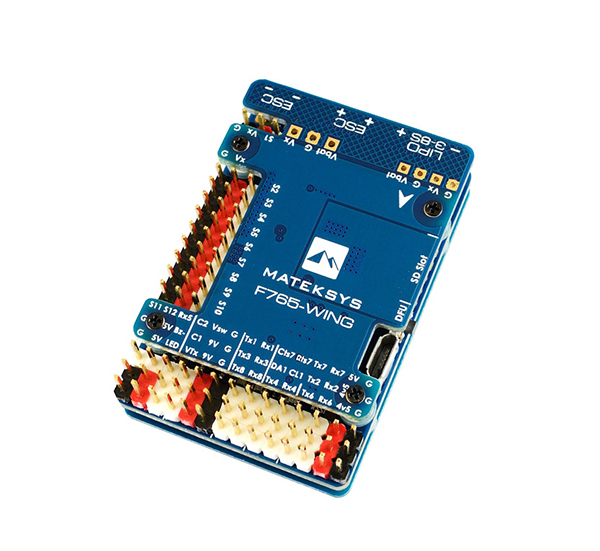

Matek F765-WING Flight Controller W/ Built-in OSD BEC
    SKU F765-WING
    Brand Matek
    Added 2019/09/10
    Updated 2019/09/10
    Tags: Matek_F765-WING_Flight_Controller_W_Built-in_OSD_BEC


    Matek F765-WING Flight Controller W/ Built-in OSD BEC

    FC Specifications

    MCU: STM32F765VIT6, 216MHz , 512KB RAM, 2MB Flash
    IMU: MPU6000 (SPI1) & ICM20602 (SPI3)
    Baro: BMP280 (I2C2)
    OSD: AT7456E (SPI2)
    Blackbox: MicroSD card slot (SDIO)
    7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
    1x Softserial1_Tx (INAV)
    12x PWM outputs (S1~S10 support Dshot)
    6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
    3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
    2x I2C
    1x SPI4 breakout
    Switchable Dual Camera Inputs
    Switchable 5V/9V(12V) for Camera/VTX
    High-precision Current Sense
    ADC VB2 voltage divider: 1K:10K
    ADC AirSpeed voltage divider: 10K:10K
    TR/SA VTX control: Yes
    WS2812 Led Strip : Yes
    Beeper : Yes
    RSSI: Yes
    Analog Airspeed sensor: Yes
    Digital Airspeed sensor: Yes
    FC Firmware

    INAV Target: MATEKF765
    ArduPilot(ChiBiOS)  Target: MATEKF765-WING

    Input voltage range: 9~36V (3~6S LiPo) w/TVS protection
    2x ESC power pads
    Battery Voltage Sensor: 1:10 (Scale 1100 in INAV,  BATT_VOLT_MULT 11.0 in ArduPilot)
    Current Senor: 132A,  3.3V ADC  (Scale 250 in INAV,  40 A/V in ArduPilot)
    BEC 5V output

    Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
    Continuous current: 2 Amps, Max.3A
    BEC 9V /12V output

    Designed for Video Transmitter, Camera, Gimbal ect.
    Continuous current: 2 Amps, Max.3A
    12V option with Jumper pad
    BEC Vx output

    Designed for Servos
    Voltage adjustable, 5V Default, 6V or 7.2V via jumper
    Continuous current: 8 Amps, Max.10A
    BEC 3.3V output

    Designed for Baro / Compass module and Spektrum RX
    Linear Regulator
    Continuous current: 200mA

    Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
    Dimensions: 54 x 36 x 13 mm
    Weight: 26g


    1 x Flight control
    3 x pin set
