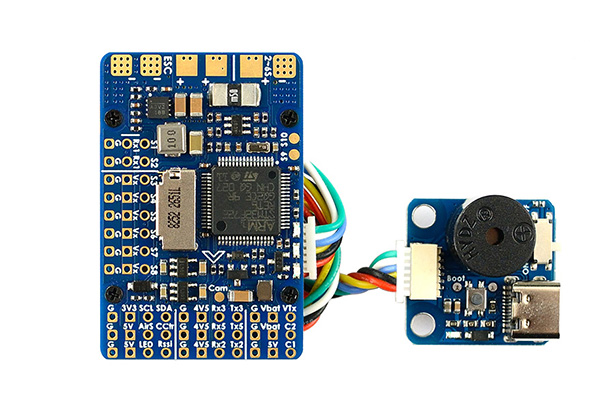

Matek F722-WPX Airplane Flight Controller (INAV Ffirmware)
    SKU F722-WPX
    Brand Matek
    Added 2020/10/20
    Updated 2020/10/20
    Tags: Matek_F722-WPX_Airplane_Flight_Controller_INAV_Ffirmware


    Matek F722-WPX Airplane Flight Controller (INAV Ffirmware)

    FC Specifications

    MCU: 216MHz STM32F722RET6
    IMU: MPU6000 (SPI)
    Baro: DPS310 (I2C)
    OSD: Pixel OSD/FrskyOSD (Uart6)
    Blackbox: MicroSD socket (SPI)
    6x UARTs(5 Spare) with built-in inversion
    1x Softserial_Tx option
    10x PWM outputs
    1x I2C
    4x ADC (VBAT, Current, RSSI, AirSpeed)
    1x SH1.0_6pin connector (4V5/G/TX4/RX4/SDA/SCL) for GPS/compass
    1x SH1.0_6pin connector for external USB and buzzer
    Dual Camera Inputs switcher
    Vbat filtered power ON/OFF switcher
    PWM camera menu control: Not supported by INAV
    DJI FPV air unit: any spare UART

    6~30V DC IN (2~6S LiPo)
    132A high-precision Current Sense (Scale 250)
    PDB/Current sense resistor: 60A continuous, 132A burst.
    BEC 5V 2A for FC & Peripherals
    BEC Vx 5A for servos, 5V/ 6V option
    Vbat filtered output 1A for VTx and Camera
    LDO 3.3V 200mA
    Battery Voltage Sensor: 1:10 (Scale 1100)

    FC Firmware
    INAV target: MATEKF722PX

    Dimensions: 44 x 29 x 10 mm
    Mounting: 25 x 25mm, Φ2mm
    Weight: 20g w/ bottom plate and USB/buzzer adapter


    1 x Flight control
