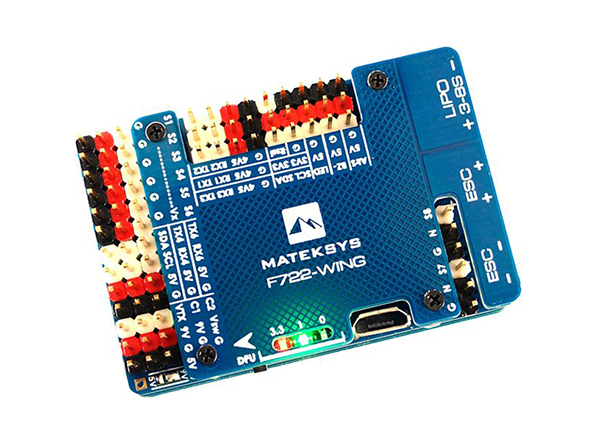

Matek F722-WING Flight Controller W/ Built-in OSD BEC
    SKU F722-WING
    Brand Matek
    Added 2019/06/26
    Updated 2019/06/26

    Tags: Matek_F722-WING_Flight_Controller_W_Built-in_OSD_BEC

    Features:


    Specifications:

    Matek F722-WING Flight Controller W/ Built-in OSD BEC


    FC Specifications


    MCU: 216MHz STM32F722RET6
    IMU: MPU6000 (SPI)
    Baro: BMP280 (I2C)
    OSD: AT7456E (SPI)
    Blackbox: MicroSD card slot (SPI)
    5x Uarts (1,2,3,4,6) with built-in inversion
    1x Softserial-Tx
    2x Motors, 6x Servos outputs
    1x I2C
    4x ADC (VBAT, Current, RSSI, AirSpeed)
    3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
    Switchable Dual Camera Inputs
    Switchable 5V/9V for Camera/VTX
    High-precision Current Sense
    TR/SA VTX control: Yes
    WS2812 Led Strip : Yes
    Beeper : Yes
    RSSI: Yes
    Analog Airspeed sensor: Yes
    Digital Airspeed sensor: Yes
    FC Firmware


    INAV Flight/BetaFlight
    Target: MATEKF722SE
    PDB


    Input voltage range: 9~36V (3~6S LiPo) w/TVS protection
    2x ESC power pads
    Battery Voltage Sensor: 1:10 (Scale 1100)
    Current Senor: 132A,  3.3V ADC,  Scale 250
    BEC 5V output


    Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
    Continuous current: 2 Amps, Max.3A
    BEC 9V /12V output


    Designed for Video Transmitter, Camera, Gimbal ect.
    Continuous current: 2 Amps, Max.3A
    12V option with Jumper pad
    BEC Vx output


    Designed for Servos
    Voltage adjustable, 5V Default, 6V or 7.2V via jumper
    Continuous current: 5 Amps, Max.6A
    Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
    BEC 3.3V output


    Designed for Baro / Compass module and Spektrum RX
    Linear Regulator
    Continuous current: 200mA
    Physical


    Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
    Dimensions: 54 x 36 x 13 mm
    Weight: 25g






    Includes/Requires:

    Includes:
    1 x Flight control
    3 x pin set
