1. All In One design. AutoAntennaTracking/AHRS based AutoPilot(3-Axis gyro+accelerometer
+magnetic compass + barometer)/Advance OSD/Power module/... are all built in this small,light unit.
2. Fully compatible with AAT system
3. Rich extension ports for Sonar/Air Speed Sensor/Other accessories.
4. AHRS is build-in with Anti-vibration design, easy to install on the plane without any damper.
5. Compatible with MAVLink protocol. Support APM Planner GroundStation software. You can synchronize the waypoints by clicking one button. There are also some GS Apps for mobile phones available.
6. Support PPM/PWM input.
7. All functions/parameters can be accessed by the transmitter and OSD menu.
8. The first AutoPilot transmitting downlink data for tracking via both VIDEO and AUDIO signals.
9. Shipped with customized shielded cables for camera/video transmitter, 10Hz LS20033GPS, 100A current sensor and USB programmer for firmware update. easy to setup.

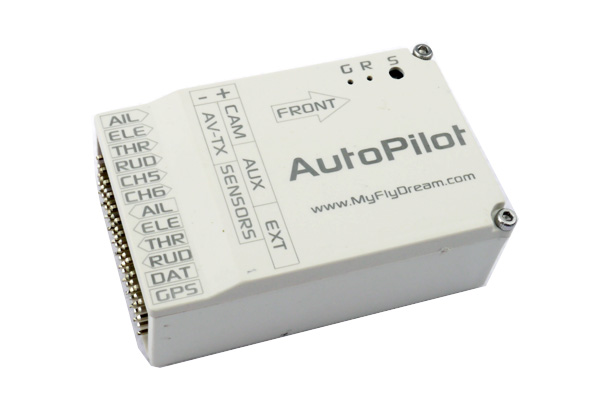

TMFD AutoPilot unit x 1
LS20033 GPS x 1
100A Current sensor x 1
Shielded cable set x 1
USB-TTL board for firware update x 1
