HolyBro 100mW 433Mhz Telemetry Radio - V3
    SKU 433-100
    Added 2018/09/07
    Updated 2018/09/07
    Tags: HolyBro_100mW_433Mhz_Telemetry_Radio_V3


    100 mW maximum output power (adjustable) -117 dBm receive sensitivity
    Open-source SIK firmware
    RP-SMA connector
    2-way full-duplex communication through adaptive TDM UART interface
    Transparent serial link
    MAVLink protocol framing
    Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
    Error correction corrects up to 25% of bit errors Open-source SIK firmware
    Configurable through Mission Planner & APM Planner
    FT230X is a USB to BASIC UART IC

    Interchangeable air and ground modules 915 or 433 mHz
    Micro-USB port
    4-position JST-GH connector

    Status LEDs
    The radios have 2 status LEDs, one red and one green. The meaning of the different LED states is:
    Green LED blinking - searching for another radio
    Green LED solid - link is established with another radio
    Red LED flashing - transmitting data
    Red LED solid - in firmware update mode

    Connecting to Pixhawk4
    Use the 4 pin JST-GH connector that should have come with the radio to connect the radio to your Pixhawk4’s “Telem 1” (“Telem 2” can also be used but the default recommendation is “Telem1”).

    Connecting to a PC
    Connecting the radio to your Windows PC is as simple as connecting the micro USB cable (which should have been included with the radio) to your PC. The necessary drivers should be installed automatically and the radio will appear as a new “USB Serial Port” in the Windows Device Manager under Ports (COM & LPT). The Mission Planner’s COM Port selection drop-down should also contain the same new COM port.


    HolyBro 100mW 433Mhz Telemetry Radio - V3

    Dimensions: 26 x 53 x 10.7mm (without antenna)
    Power Supply voltage: 5VDC (from USB or JST-GH)
    Transmit current: 100 mA at 20dBm
    Receive current: 25 mA
    Serial interface: 3.3 V UART

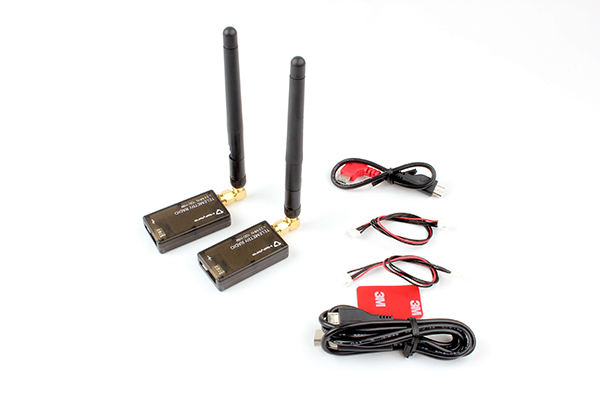

    2 x data radios
    2 x antennas
    2 x conversion connectors
    2 x 6-pin to 4-pin cables
    1 x Micro USB cable
    1 x OTG cable
