SKU | FR-007 |
---|---|
Added | 2016/06/27 |
Updated | 2016/06/27 |
Features:
Features:
1. Integrated DVR, auto recording. You can play back to locate your drone in case of lost (optional).
2. 40 channels, including 32 popularly used channels plus 8 channels usually used during professional contest.
3. With 1/4 tripod screw hole, can be installed directly to camera tripod. 3.5mm, 4-segments connector standard signal cable, compatible with most FPV Goggles.
4. Passive heat emission. RGB indicator, easy to tell which way has a better reception.
5. Wide range power input: 2S~6S(7V-24V)
6. Reception sensitivity up to -96%
7. Support up to 32G card (not included)
1. Integrated DVR, auto recording. You can play back to locate your drone in case of lost (optional).
2. 40 channels, including 32 popularly used channels plus 8 channels usually used during professional contest.
3. With 1/4 tripod screw hole, can be installed directly to camera tripod. 3.5mm, 4-segments connector standard signal cable, compatible with most FPV Goggles.
4. Passive heat emission. RGB indicator, easy to tell which way has a better reception.
5. Wide range power input: 2S~6S(7V-24V)
6. Reception sensitivity up to -96%
7. Support up to 32G card (not included)
Specifications:

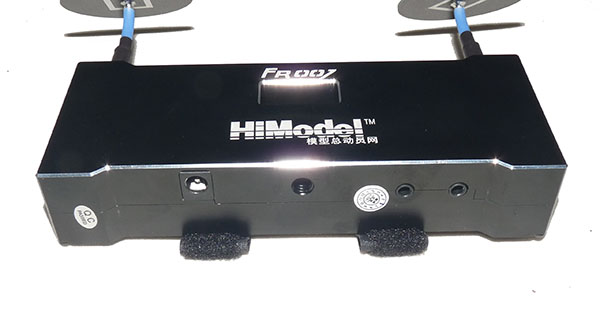

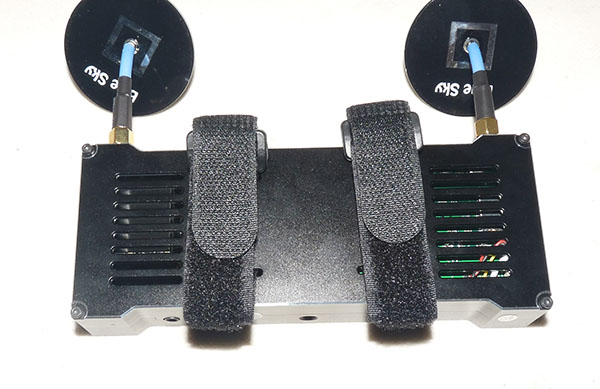

HiModel Dual 5.8G 40Ch Receiver W/ Integrated DVR FR007
1 | Receiving frequency: | ISM 5.6GHz-5.95GHz 40CH |
2 | Operating Voltage: | 7.0V-28.0V |
3 | Supply current: | <300mA/12VDC |
4 | Video Output Level: | 1V±0.2Vp-p/75Ω |
5 | Aidio Output Level: | 0.5~2.0Vp-p/10KΩ |
6 | TV System: | PAL/ NTSC / SECAM(AUTO) |
7 | Wireless Receiver Sensitivity: | <-92dBm(15dBuV) |
8 | Antenna Connector: | SMA Connector |
9 | Weight: | 212g(dvr) |
10 | Dimensions(L*W*H): | 60*150*27.5mm |
11 | Operating Temperature: | –10℃~+85℃ |

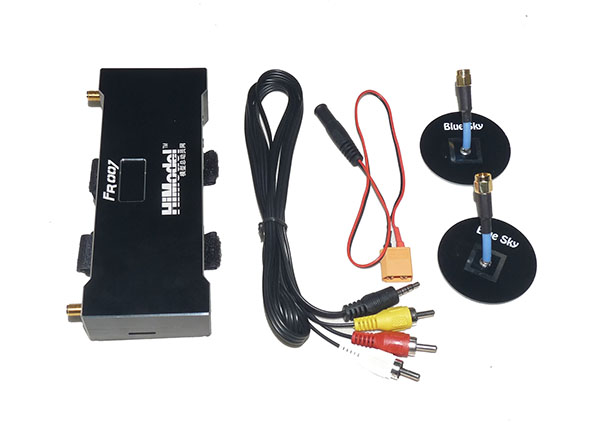

Includes/Requires:
Includes:1x Dual 5.8G 40Ch Receiver W/ Integrated DVR FR007
1 x power cable
1 x video cable
2 x 5db antennas
2 x binding belts
