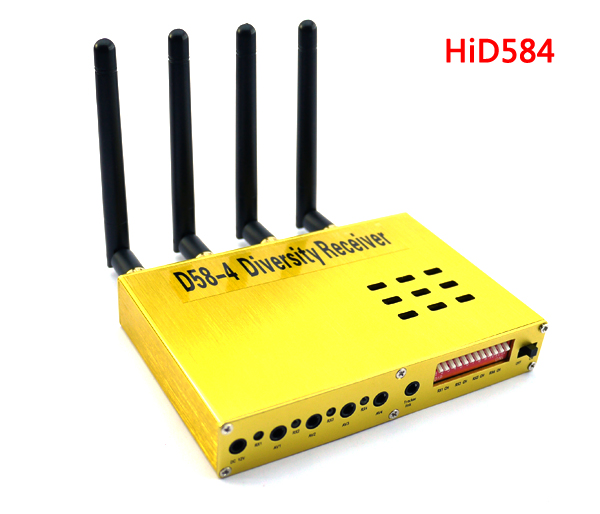

HiModel 5.8G 4-way Diversity A/V Receiver (RX) D58-4 | SMA, jack
    SKU HI58-4
    Added 2012/12/05
    Updated 2013/04/07
    Tags: Diversity  Receiver,  4-way  diversity  receiver


     Four Receiver for best reception
     Automatic Antenna Switching
     Triple, buffered AV outputs
     Can receive 4 different channels at the same time
     Not affect by 2.4GHz R/C Radios

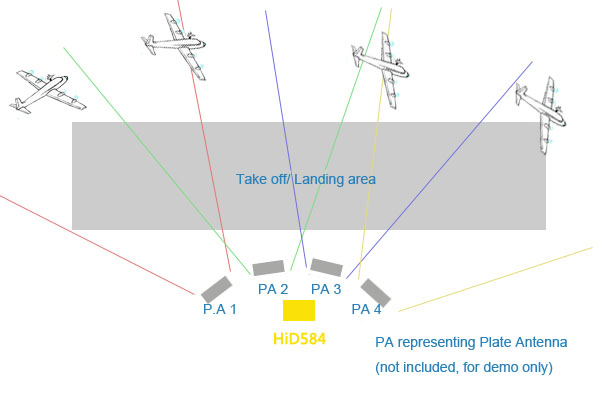

     AV Receiver with Diversity inputs
     Light weight, durable,anodized aluminum case


    1. Specification:
     Receiver Frequency:
    CH1: 5705MHz CH2: 5685MHz CH3: 5665MHz CH4: 5645MHz
    CH5: 5885MHz CH6: 5905MHz CH7: 5925MHz CH8: 5945MHz
     Video Output: 75Ω/1Vp­p
     Audio Output: 10KΩ/500mVp­p
     TV System: PAL/NTSC/SECAM
     Input Voltage: 12V/500mA

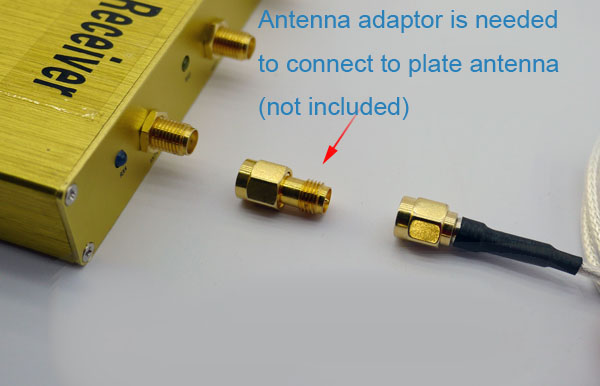

    - Connector type: SMA Jack (on the receiver side)    Refer to here for connector type diagram

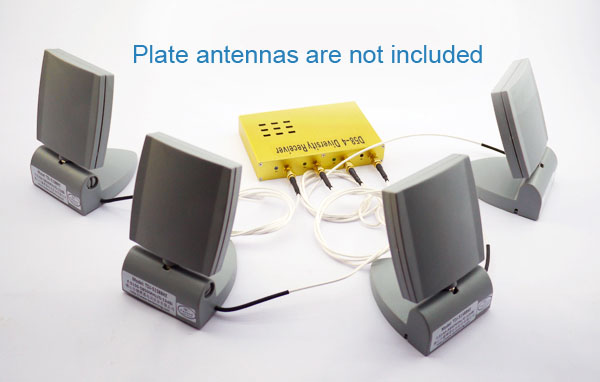

    1 x diversity receiver
    4 x 5.8G 2db antennas
    4 x signal wires
    1 x power cable (JST connector)
