- 32 channels, compatible with most receivers available on market.
- 3-6S Wide input voltage range.
- Large PCB design, ensures heat radiation & reliability during long time transmission.
- Integrated Voltage regulator, supports output 12V or 5V for different cameras, 12V output by default. (output voltage is optional by using jumper)
1. Output voltage can only be done before the TX is powered on.
2. Antenna must be securely installed before power on.
3. Channel switching can only be done before the TX is powered on, channel switching will not work under power.
4. There are two different colors for this item, white and black, will send random based on stock availability.

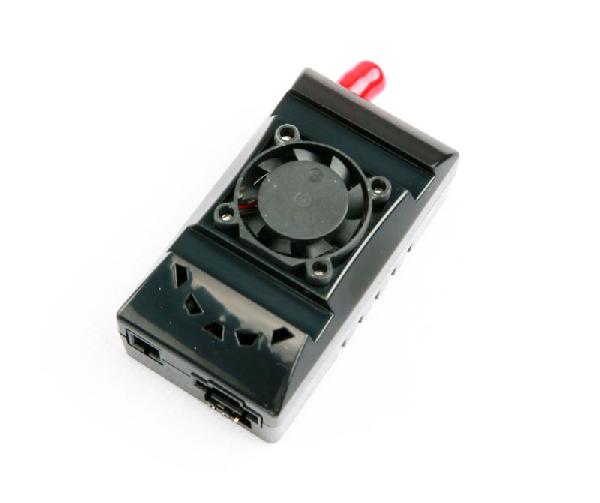

HiEE 5.8G 800mw 32-Channel A/V Transmitter TS3208video format supported: NTSC/PAL (auto)
Audio format supported: 6.0M and 6.5M audio coding, support conventional AAT system
Power input: 3-6S
Working current: 210MA @12V
Antenna connector: RP-SMA, jack (module side)
Dimension: 64x 35 x 27mm
Weight: 46g (TX module only)
1 x transmitting unit (TX)
1 x power supply cable
1 x 5.8G 2db antenna
1 x A/V wire
