Tags: HiEE7  inch  5.8G  Dual-way  32-Channel  Monitor  RM5833  (Built-in  Battery)

Features:

Special features:
1. Integrated dual-way 5.8G diversity 32ch receiver.
2. Auto-scan function.
3. Built-in 1500mAh Lipo battery
3. None-blue screen when no signle

Specifications:

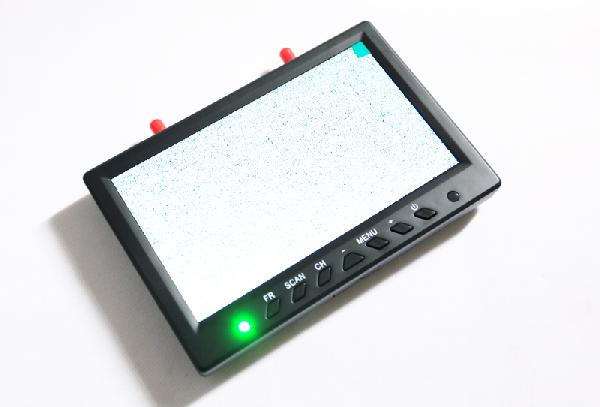

HiEE7 inch 5.8G Auto-scan Diversity Receiver FPV Monitor RM5833 (Built-in Battery)

- LCD Screen: 7inch
- Pixel: 800 x 480
- Brightness: 450cd/m2
- Channel #: 32
- Video format: PAL/NTSC
- Working channels auto-scan supported.
- Built-in battery: 1500mAh/ 7.4V
- Outer power supply: 2-6S

Channel Table

	CH	CH
FR	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
FR	FR1(A)	5865M	5845M	5825M	5805M	5785M	5765M	5745M	5725M
	FR2(B)	5733M	5752M	5771M	5790M	5809M	5828M	5847M	5866M
	FR3(E)	5705M	5685M	5665M	5645M	5885M	5905M	5925M	5945M
	FR4(F)	5740M	5760M	5780M	5800M	5820M	5840M	5860M	5860M

Includes/Requires:

Includes:
1 x monitor
2 x 2db antennas
1 x DC input cable
2 x AV cables
1 x instruction manual
