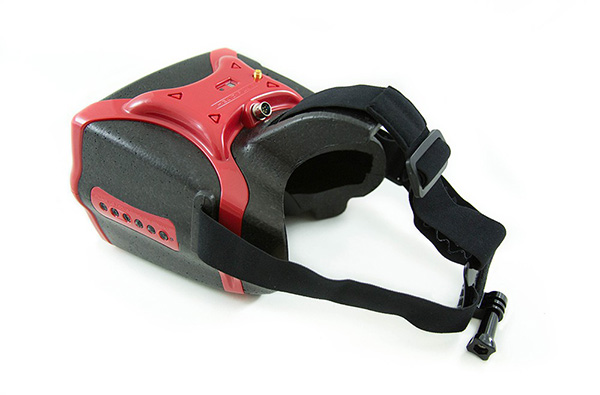

Headplay 1280 x 800 5.8G 40CH Receiver FPV GOGGLE/Video Glasses - Red
    SKU VGL-RD
    Added 2016/01/06
    Updated 2016/09/05

    Tags: Headplay  1280  x  800  5.8G  40CH  Receiver  FPV  GOGGLE  Video  Glasses

    Specifications:

    Headplay 1280 x 800 5.8G 40CH Receiver FPV GOGGLE/Video Glasses


    Power supply: 6-15V  (2S Lipo suggested)
    Working current: 340mA @ 12V
    Display size: 7 inch
    Resolution: 1280 x 800
    Field of view: 72 degree
    Video signal input: HDMI/ AV
    Built-in speaker with volume control button
    Receiver: 5.8G, 40CH
    Sensitivity: -90dBm
    Antenna connector: SMA, jack (goggle side)
    Weight: 400g (excluding battery)




    Includes/Requires:

    Included

    1 x goggle
    1 x charger (for 2S Lipo battery, battery is NOT included)
    1 x DC plug DIY cable  (for battery)
    3 x charger conversion plug
    1 x video cable
    1 x F330 lens
    1 x instruction manual


    Requires:
    1 x 2S Lipo battery  (Battery dimension suggestion: Length <100mm, width <40mm, thickness is not critical)

    * Due to security restrictions, battery now is not allowed to ship via air shipments, so battery is NOT included in this product, instead, we included a DIY conversion cable with DC plug, customer can use your current 2S Lipos for it.
