SKU | FVRPJB |
---|---|
Brand | HAWK-EYE |
Added | 2015/12/15 |
Updated | 2015/12/15 |
Features:
Special features:1. 700Lux high brightness.
2. 5.8G receiver (single receiver)
3. No blue screen
4. Auto/ manual channel scanning
5. Voltage display, timer functions
Specifications:

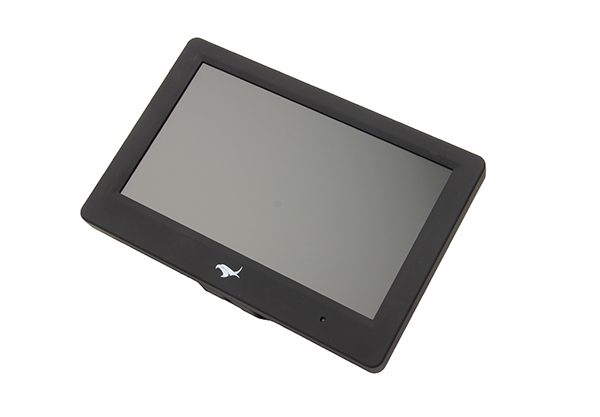

Hawkeye Sharp Vision 7 inch High Brightness FPV Monitor/ 5.8G Receiver (Single Receiver)
- LCD Screen: 7 inch- Pixel: 800 x 480
- Brightness: 700Lux
- Response time: 10ms
- Power supply: 2-6S
- Working current: 850mA @ 12V; 1.4A @ 7.4V
- Max TF card supported: 32G (not included)
- Receiving sensitivity: -93db
- Antenna connector: RP-SMA, jack (monitor side)
- Weight: 400g
Channel Table
A1: 5.645G | B1: 5.740G | C1: 5.725G | D1: 5.733G |
A2: 5.665G | B2: 5.760G | C2: 5.745G | D2: 5.752G |
A3: 5.865G | B3: 5.780G | C3: 5.765G | D3: 5.771G |
A4: 5.705G | B4: 5.800G | C4: 5.785G | D4: 5.790G |
A5: 5.885G | B5: 5.820G | C5: 5.805G | D5: 5.809G |
A6: 5.905G | B6: 5.840G | C6: 5.825G | D6: 5.828G |
A7: 5.925G | B7: 5.860G | C7: 5.845G | D7: 5.847G |
A8: 5.945G | B8: 5.880G | C8: 5.865G | D8: 5.866G |
Includes/Requires:
Includes:1 x monitor
1 x antenna
