F01010509090

Price(USD):	$176.04     Discontinued   Suggesting Restock
Price(USD):Member Price:	$176.04     Discontinued   Suggesting Restock Sign in for member price
Price(USD):Buy:	$176.04     Discontinued   Suggesting Restock     Add To Wish List

Tags: Hawkeye  Sharp  Vision  7  inch  FPV  Monitor  Built-in  DVR  &  Dual  5.8G  Receiver

Features:

Specifications:

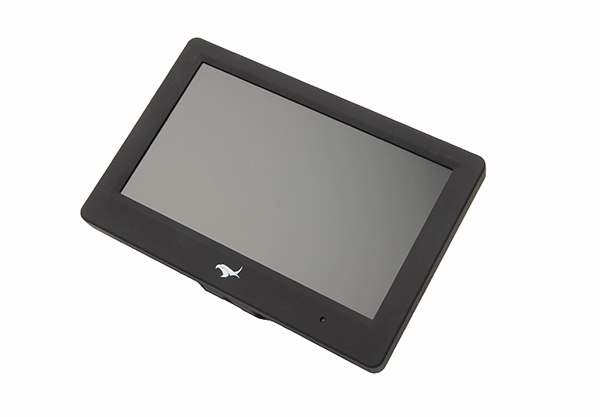

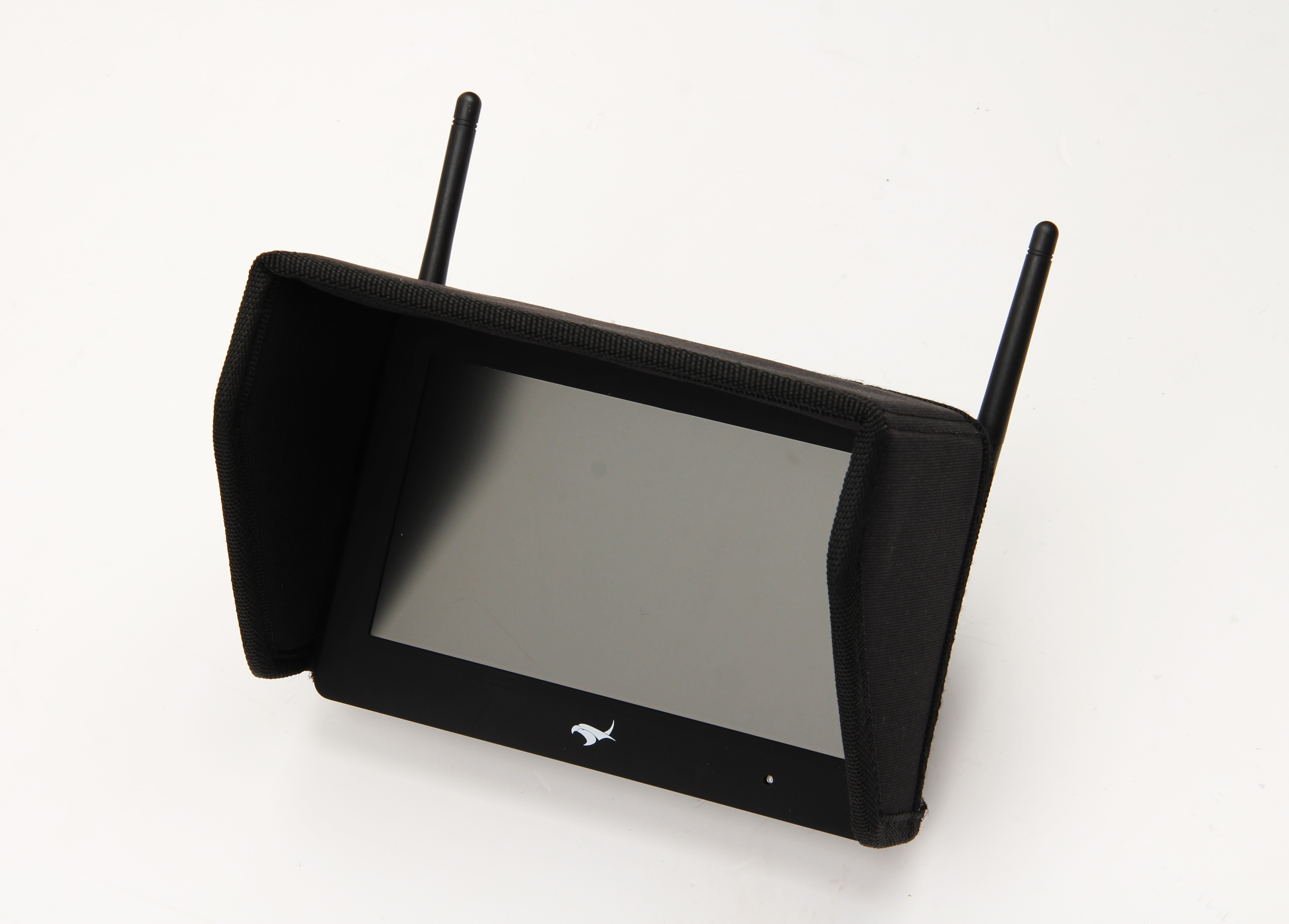

Hawkeye Sharp Vision 7 inch FPV Monitor/Built-in DVR & Dual 5.8G Receiver

- LCD Screen: 7 inch
- Pixel: 800 x 480

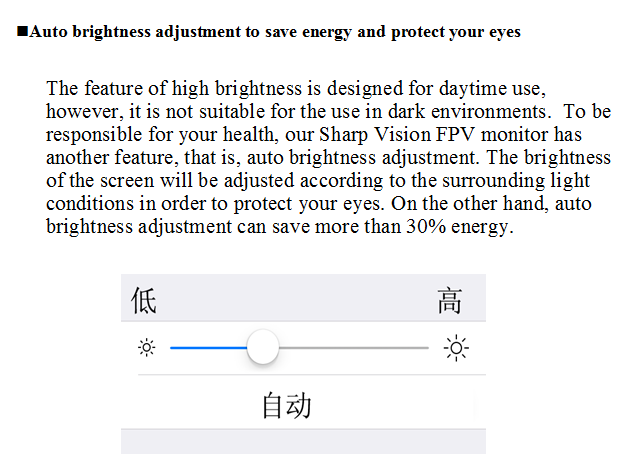

- Brightness: 700Lux
- Power supply: 2-6S
- Working current: 850mA @ 12V; 1.4A @ 7.4V
- Input Signal format: Video: PAL/ NTSC, audio

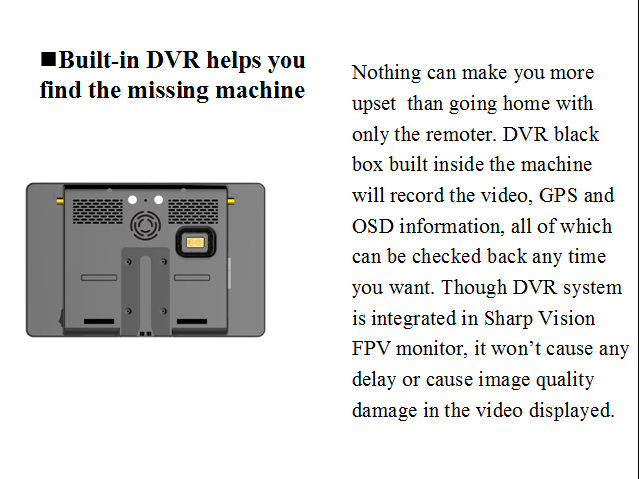

- DVR format: D1(720*576)/VGA(640*480)/QCGA(320*240)
- Max TF card supported: 32G (not included)

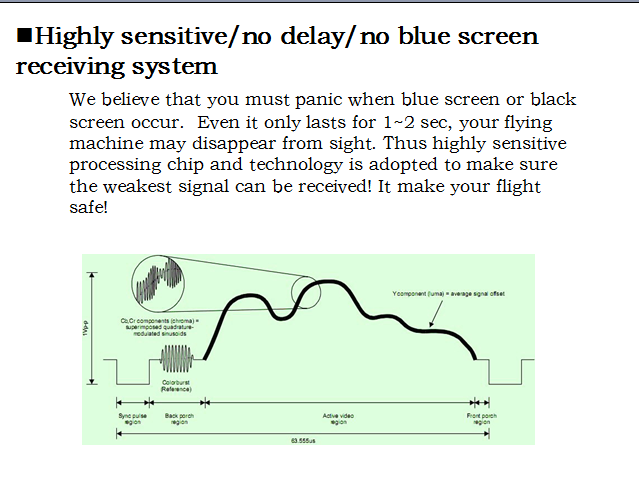

- Receiving sensitivity: -93db

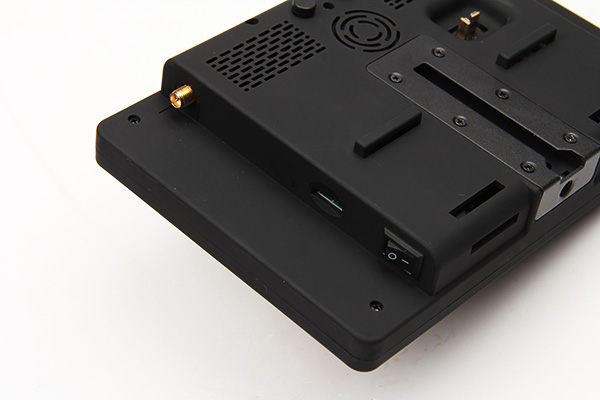

- Antenna connector: RP-SMA, jack (monitor side)
- Weight: 420g

Hint: Please backup the data of your TF card, the DVR will format the TF card for the first time use.

Channel Table

A1:  5.645G	B1:  5.740G	C1:  5.725G	D1:  5.733G
A2:  5.665G	B2:  5.760G	C2:  5.745G	D2:  5.752G
A3:  5.865G	B3:  5.780G	C3:  5.765G	D3:  5.771G
A4:  5.705G	B4:  5.800G	C4:  5.785G	D4:  5.790G
A5:  5.885G	B5:  5.820G	C5:  5.805G	D5:  5.809G
A6:  5.905G	B6:  5.840G	C6:  5.825G	D6:  5.828G
A7:  5.925G	B7:  5.860G	C7:  5.845G	D7:  5.847G
A8:  5.945G	B8:  5.880G	C8:  5.865G	D8:  5.866G

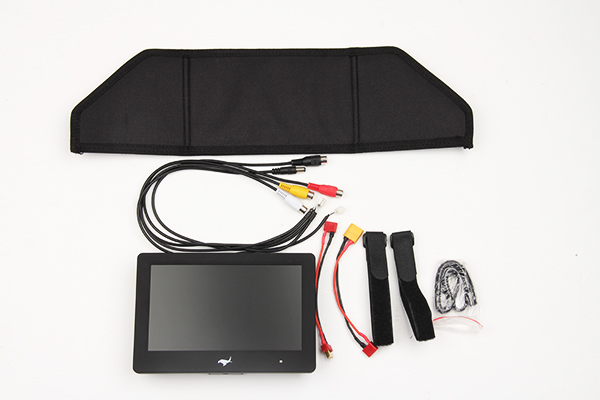

Includes/Requires:

Includes:
1 x monitor
1 x antenna
