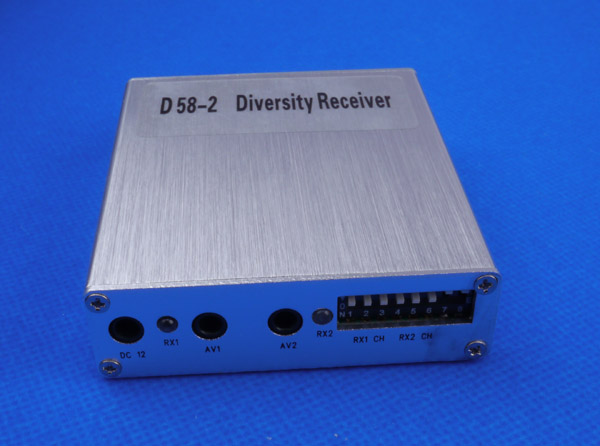

HI582 5.8G A/V Diversity Receiver | SMA, jack
    SKU HI-582
    Brand HiModel
    Manual Manual 1
    Added 2012/08/21
    Updated 2013/06/19

    Tags: Diversity  Receiver

    Features:



    Features:
     Twin Receiver for best reception
     Automatic Antenna Switching
     Triple, buffered AV outputs
     Can receive 2 different channels at the same time
     Not affect by 2.4GHz R/C Radios
     AV Receiver with Diversity inputs
     Small, light weight,durable,anodized aluminum case

    Specifications:

     Receiver Frequency:
    CH1: 5705MHz CH2: 5685MHz CH3: 5665MHz CH4: 5645MHz
    CH5: 5885MHz CH6: 5905MHz CH7: 5925MHz CH8: 5945MHz
     Video Output: 75Ω/1Vp­p
     Audio Output: 10KΩ/500mVp­p
     TV System: PAL/NTSC/SECAM
     Input Voltage: 12V/500mA
     Weight: 197 g
     Size: 76x64x18mm

    Antenna connector:  SMA, jack (module side)  Refer to here for connector type diagram




    * Plate type antennas are not included (to be purchased separately).

    Includes/Requires:

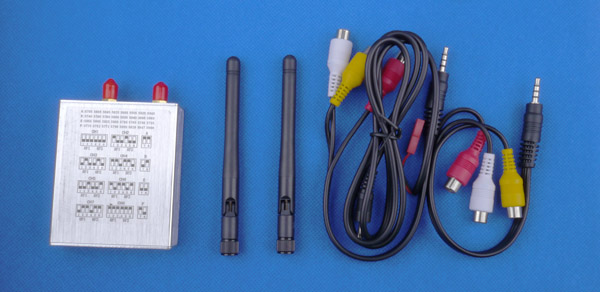

    Includes:
    1 x receiving unit
    1 x basic wires
    2 x 5.8g 2db all-direction antennas
    2 x video output wires

    * hint: when use plate type antenna (not included), you also need SMA adaptor, otherwise you can not connect the antenna to the receiver.
