| SKU | GT5825 |
|---|---|
| Brand | GTPOWER |
| Added | 2012/12/31 |
| Updated | 2013/04/26 |
Specifications:
TX specs:Video Format: Pal/NTSC
Output impedance: 50 Ohm
Output power: 21-23 dBm
Channels: 8
Transmitter operating voltage: 7.4-12.6 V DC/200mA
Video bandwidth: 0-8.0 MHZ
Audio input impedance: 10K/Ohm
Audio input level: 0.5-2.0 Vp-p
Audio frequency: 6.5 MHZ
Antenna connector: RP-SMA, jack (TX side) See connector type diagram
Video input level: 0.8-1.2 Vp-p
Video input impedance: 75 Ohm
Dimensions: 55x26x17 mm
Weight: 25 g
RX specs:
Channels: 8
Operating temp: -10~85 ℃
Audio frequency: 6.5 MHz
Video input impedance: 75 Ohm
Audio input impedance: 10K/Ohm
Antenna connector: RP-SMA jack (RX side)
Channels 5.8G : 5705,5685,5665,5645,5885,5905,5925,5945 MHZ
Receiver operating voltage: 7.4~12.6 V DC
Video bandwidth: 0~8.0 MHz
Video input level: 0.8~1.2 Vp-p
Audio input level: 0.5~2.0 Vp-p
Weight: 43 g
Dimensions: 61x52x13 mm
Includes/Requires:

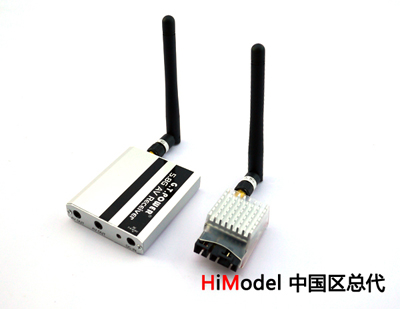

Includes:1 x transmitting unit (TX)
1 x receiver (RX)
2 x antennas
1 x basic wires set
1 x hooking accessory bag (double-side adhensive tape, binding strips etc.)
