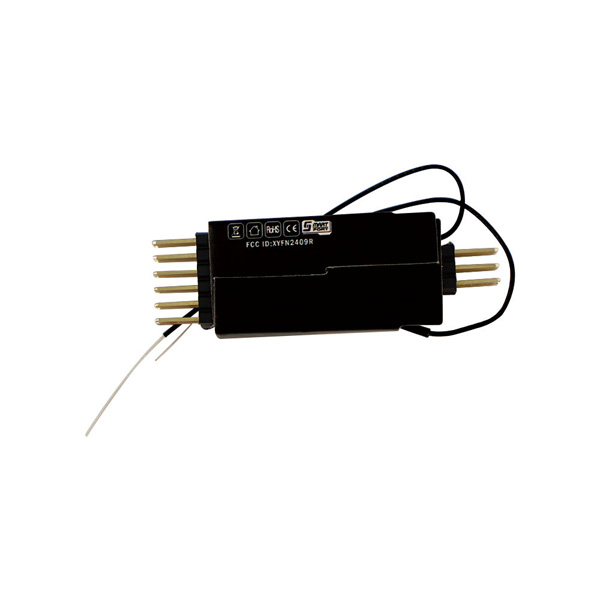

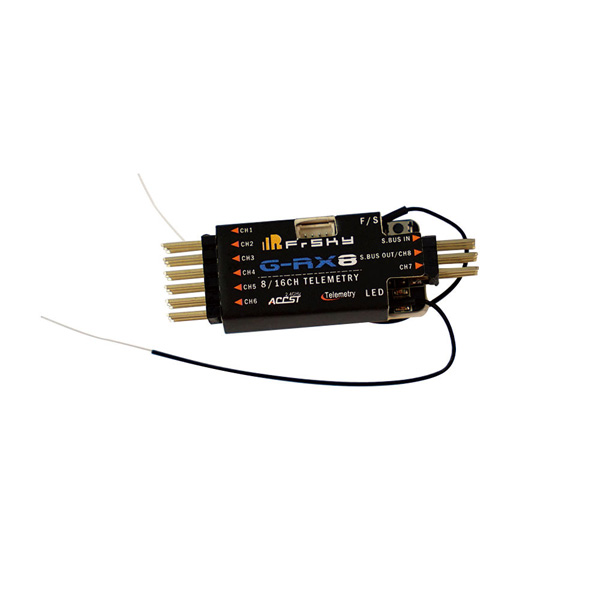

FrSky G-RX8 8/16ch Telemetry Receiver
    Brand FrSky
    Manual Manual 1
    Added 2018/11/07
    Updated 2018/11/07
    Tags: FrSky_G-RX8_8_16ch_Telemetry_Receiver


    This receiver is designed to be used for the Gliders. FrSky built the variometer sensor into the RX8R receiver, this will give you telemetry data like altitude and vertical speed. The G-RX8 supports the redundancy function as well, this means you can add on another receiver to create a back-up in case one fails. In addition, it supports SBUS and PWM mode, you can switch between the 2 channels very easily.


    FrSky G-RX8 8/16ch Telemetry Receiver

    Dimension: 55.26*17*8mm
    Weight: 5.8g
    Number of Channels:  16 CH(1-8ch/9-16ch from conventional channel outputs, 1~16CH from SBUS  port).
    Operating Voltage Range: 3.6 -10V
    Operating Current: 100mA@5V
    Operating Range: Full range
    Firmware Upgradable
    Compatibility: D16 mode
    Integrate with high precision variometer sensor
    Support redundancy function
    Support telemetry data transmission
    Switchable SBUS/PWM mode (1~8CH from PWM outputs and 1~16CH from SBUS output)

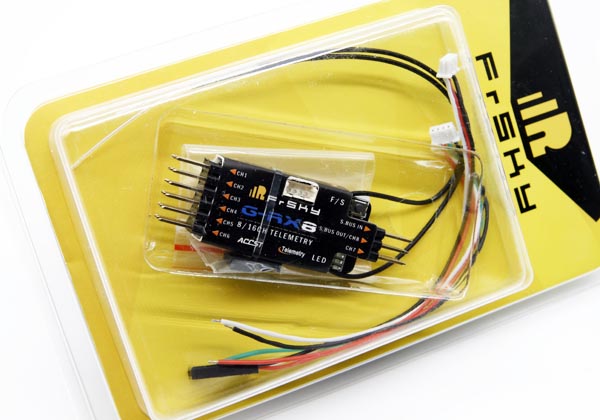

    1 x FrSky G-RX8 receiver
