| SKU | FV121D |
|---|---|
| Added | 2014/09/03 |
| Updated | 2014/09/03 |
Features:
| Advanced Features | ||||
| *.High sensitivity diversity receivers for the best possible reception,Built in Dual receiver Automatically for best reception automatic switching. | ||||
| *Non Blue Screen | ||||
| *Default Display View | ||||
| *Supports Composite Video RCA Input | ||||
| *Display Resolution up to 1920x1440 Pixels |
Specifications:
Feelword 12 inch 32Ch 5.8G FPV Monitor FPV121DT
| Specification | ||||
| Description: | 12.1" FPV monitor for aerial photography | |||
| Model: | FPV121DT | |||
| Resolution: | 800*600 pixels (max to1920*1440) | |||
| Dot pitch: | 0.307575(H) x 0.3075(V) | |||
| Brightness: | 330cd/m² | |||
| Contrast: | 900:1 | |||
| Aspect Ratio: | 4:3 | |||
| Backlight: | LED | |||
| Response time： | 30 ms | |||
| Inputs: | VGA,VIDEO1,VIDEO2,AUDIO,HDMI(YPbPr for Optional) | |||
| Support video format: | NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG. | |||
| Install Way: | 1/4 Screw Hole and VESA 100*100mm | |||
| Viewing Angle: | 70°/70°(L/R) 50°/70°(U/D) | |||
| Power Consumption: | ≤12W | |||
| Input Voltage: | DC 6～24V | |||
| workinging Temperature: | -10℃～50℃ | |||
| Storage Temperature: | -20℃～60℃ | |||
| Unit Size: | 300（L）× 245(W)×45.3(H) mm | |||
| Unit Weight: | 1280g | |||
| Advanced Features | ||||
| 1.High sensitivity diversity receivers for the best possible reception,Built in Dual receiver Automatically for best reception automatic switching. | ||||
| *Non Blue Screen | ||||
| *Default Display View | ||||
| *Supports Composite Video RCA Input | ||||
| *Display Resolution up to 1920x1440 Pixels | ||||

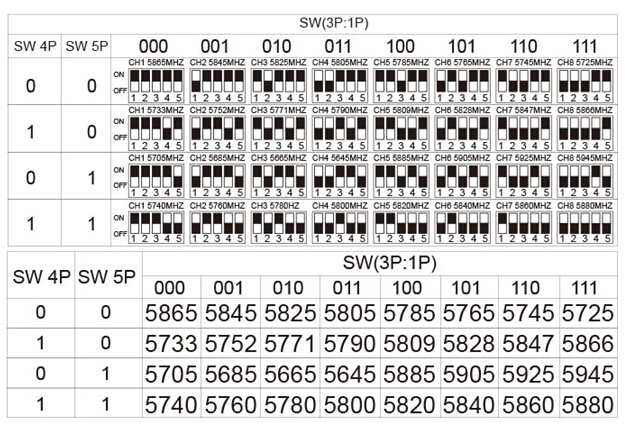

| Wireless Built-in Receiver 32 Standard Channels | ||||
| Ch1 | 5865 | 5733 | 5705 | 5740 |
| Ch2 | 5845 | 5752 | 5685 | 5760 |
| Ch3 | 5825 | 5771 | 5665 | 5780 |
| Ch4 | 5805 | 5790 | 5645 | 5800 |
| Ch5 | 5785 | 5809 | 5885 | 5820 |
| Ch6 | 5765 | 5828 | 5905 | 5840 |
| Ch7 | 5745 | 5847 | 5925 | 5860 |
| Ch8 | 5725 | 5866 | 5945 | 5880 |
| Standard Accessory | Optional Accessory | Packing Details | ||
| Two Antenna | Sony F970 Plate（custom-made） | Box size | 35x34.7x11.7CM | |
| Cloth Sunshade | Canon LP-E6 Plate（custom-made） | Per box G.W. | 5kgs | |
| Operation Manual | Panasonic D28S/D54 Plate（custom-made） | Per Carton | 5pcs | |
| DC12V Power Adapter | Hot Shoe Mount | Carton Size | 63x35.5x35CM | |
| N.W. | 15kgs/carton | |||
| G.W. | 16kgs/carton | |||
Includes/Requires:
Includes:1 x monitor
1 x sunlight shield
2 x 2db antennas
1 x 12V AC adaptor
1 x manual
