Tags: FX797T  40CH  5.8G  25mW  Mini  Transmitter  TX  w  600TVL  Wireless  Camera  Leaf  Antenna

Features:

Features:
- Built-in with 25mW 40CHs 5.8Ghz transmitter.
- It covers over 100 meters with excellent video
- Wide view angle lens: 120°
- 2.5V-5V wide working voltage.
- Ultra-light weight, only 4.5 gram.


Operating Instructions:
- How to change frequencies (bands/channels)
- Press Band/Channel button once to change channeel.
- Push and hold button for 2 seconds to change band

Specifications:

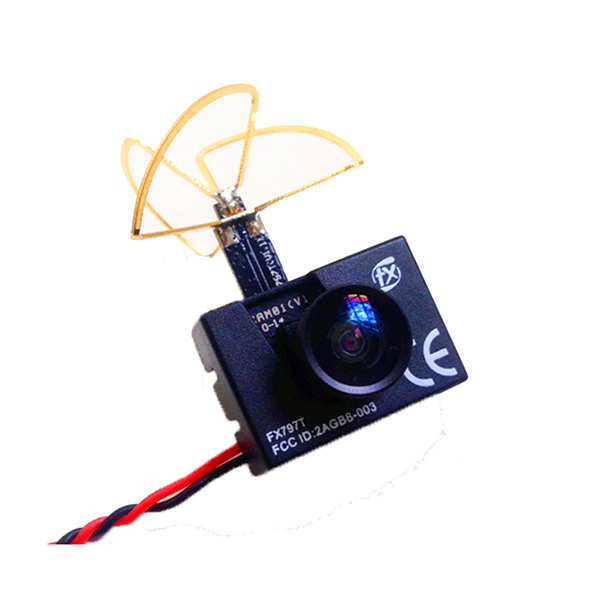

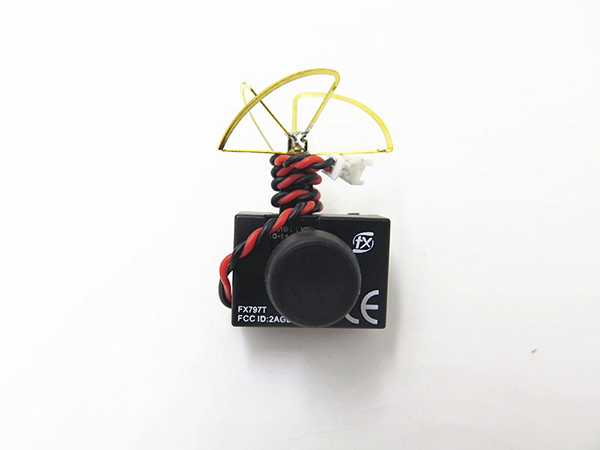

FX797T 40CH 5.8G 25mW Mini Transmitter TX w/ 600TVL Wireless Camera Leaf Antenna (Antenna fixed)

Specs:

- Transmitter power: 25mw
- Input power: 2.5V-5V
- Working currency: 250mA@3.7v 190mA@5v
- Camera resolutions: 600TVL
- Min illuminations: 1 lux
- Field of view: 120°
- Antenna dimensions: 20*25mm
- Antenna: 3 lobe right hand circular polarized
- Video output:NTSC
- Frequency:5.8Ghz 5 bands 40 channels, with raceband: 5658 to 5917
- Push button operation, long press for band, short press for channel.
- 2 row LED indicators,5 LED for band, 8 LED for channel
- Size: 35 x 30 x 25mm
- Weight: 4.5g
