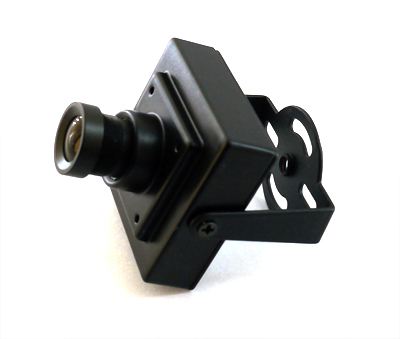

FPV 700-line Camera 1/3 Sony CCD - PAL
    SKU CAM700P
    Added 2012/10/31
    Updated 2012/11/29
    Tags: video  recording  system,  FPV,  first  person  view,  video  camera


    Special features:
    - Using latest SONY Effio-E chips, supports OSD manual control.


    Imaging Device: 1/3" Sony 960H Exview HAD CCD II - PAL
    Horizontal Resolution:700TVL
    Effective Pixels: PAL: 976H×582V
    Scanner System: PAL
    Minimum Illumination: 0.01LUX/F1.2
    D/N Selection: Color/B/W/Auto
    O.S.D Menu: Available
    Language: Chinese/English
    Noise Reduction: 2D-NR 0-15 level
    Gain Control: Auto/MANUAL
    White Balance: Auto/MANUAL
    Backlight Compensation: BLC/HLC/OFF selectable
    S/N Ratio: ≥48dB
    Electronic Shutter: PAL:1/50-1/100.000s;
    Sync. System: Internal
    Video Output: 1.0Vp-p/75Ω
    Lens: 3.6mm
    Power: DC12V±5%
    working current: 70mA
    Operation Tem: -20℃--60℃
    Camera dimension: 36(W)x 36(H) x 33.5(length)mm (excluding the camera mount)

    Wiring guide:
    Red- positive ("+"),
    black - Negative ("-"),
    Yellow - signal


    1 x camera
    1 x OSD button board
    1 x wire set
