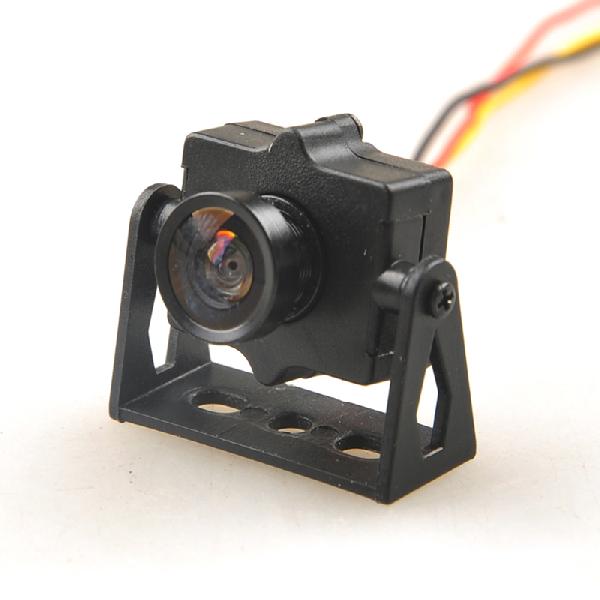

FPV 520-line Mini Camera W/ Mount (4g only) - PAL
    SKU HM520-P
    Brand AOMWAY
    Added 2015/08/19
    Updated 2017/06/16

    Tags: FPV  520-line  Mini  Camera  W  Mount  -  PAL

    Features:

    -Super light camera, 4g only including wire and camera mount.
    - Installation angle adjustable

    Good choice for small size multicopters.

    Specifications:

    FPV 520-line Mini Camera W/ Mount (4g only) - PAL


    Effective pixel:   720(H)x576(V)
    Senoring chip: 1/4 inch HD Color CMOS
    View angle:  H:120°/V:100°
    Video output: 1Vp-p75ohm
    Power supply: 3.3 - 5V
    Working current: 80mA
    Weight: 4g (including wire and mount)
    Video format: PAL
    Dimension: 24mm x 22mm x 10mm (including mount)


    Wiring hint:
    Yellow wire: Video
    Red: +5V power input
    Black: GND

    * The switch on the back is for reversing image.

    Includes/Requires:

    Includes:
    1 x  camera with mount
