FPV 5.8G 500mW A/V Transmitting/receiving System | RP-SMA, jack
    SKU FV5850
    Added 2011/02/19
    Updated 2013/06/03
    Tags: video  recording  system,  FPV,  telemetry  system,  500mw,  TS  352,  RC  305


    FPV 5.8G 500mW A/V Transmitting/receiving System, a good choice for avoiding interference for customers using 2.4G radio system.

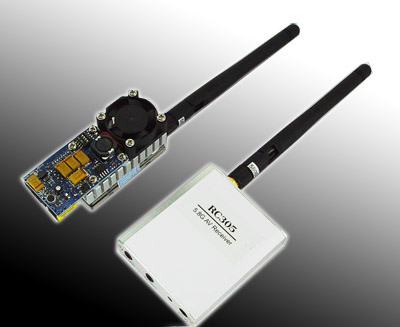

    FPV 5.8G 500mW A/V Transmitting/receiving System

    Transmitter specs ( TS352):
    Transmitting unit weight: 68.5g (including antenna but excluding wires)
    Size: 69mm x 31mm x 26mm
    Power input: 7.4-13V
    Output power: 500mW
    Wording current: 550mA
    Channel number: 8-ch
    Digital phase-locked loop circuit, no temperature drift.

    Receiver specs (RC305):
    Video signal resistance: 75Ω
    Antenna connection: RP-SMA  jack (module side)   Refer to here for connector type diagram
    Power supply: 9-12V
    Working current: 170mA
    Channel number: 8
    A/V output port number: 2
    Size: 100mm x 70mm x 18mm
    Weight: 50g (including antenna, but excluding wires)
    Compatible with PAL and NTSC

    * Make sure the correct polarity, damage due to wrong polarity is not covered by warranty.


    1 x transmitting unit
    1 x receiving unit
    1 x basic wire set

    * Plastic bag packing, No instruction manual supplied with this product.
