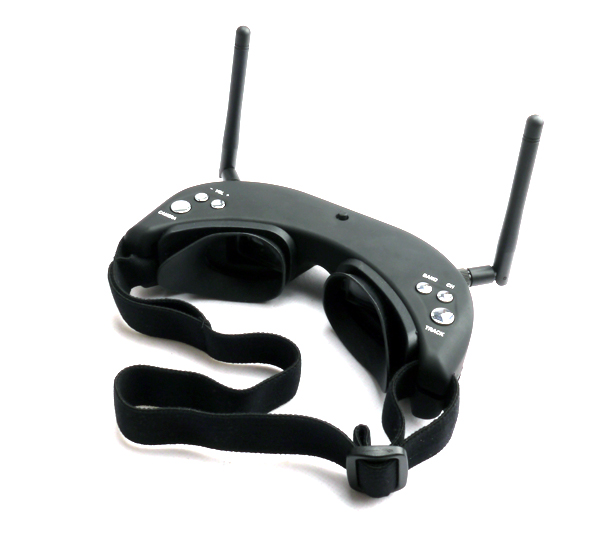

FPV 5.8G 32CH Diversity Receiver Wireless Head Tracing GOGGLE/Video Glasses SKY01
    SKU SKY-01
    Manual Manual 1
    Added 2013/10/22
    Updated 2019/06/10

    Tags: vido  glasses,  head  tracking  video  glasses,  wireless  video  glasses

    Features:


    Special features:
    - Higher resolution display 854 x 480;
    - Head-track  function. (via Futaba radios)
    - 5.8G, 32 channels diversity receivers.
    - Integrated front camera, you can see the vision in front of you without removing the glasses.


    Wireless

    The FPV Google withBuilt-in 5.8Ghz Diversity Receiver and diversity Antenna inputs for best reception.It working in diversity mode to achieve good signal utilization and improve theimage quality.



    It supports 4 Bandsand total 32channels (Bands selection and Resulting Frequencies see details in Specifications



    Head Tracker

    Support Head-track  function.

    Front Camera

    · TheFront Camera is Wide-Angle Camera with 680X480(VGA) Resolution and good low Illumination. It's very convenient to view around without taking off the Goggles.

    · Press"Camera" button to open the Front Camera.

    Volume

    · Eachboot is automatically set to the lowest volume to avoid sudden loud boot.

    · Along beep indicates that you have reached the MAX or MIN Volume. .

    Display Setup



    Interpupillary distanceIPDAdjustable



    · Pull the IPD Adjuster to adjust the interpupillary distance

    Brightness/ contrast Adjustable

    AV input



    · Thegoggles support AV IN. The wireless model will close when the AV IN isconnected to save power.

    · TheFront Camera is ok for use under AV IN mode.

    AV output

    · AVOut is the diversity Video and Audio output

    · Earphoneport is audio output for connecting earphones.


    Specifications:

    FPV 5.8G 32CH Diversity Receiver  Wireless Head Tracing GOGGLE/Video Glasses SKY01


    Compatible transmitters (the transmitter for RC model, not the video transmitter):
    FUTABA FF-7, FF-8, FF-9, T9Z, T12MZ and T14MZ & WFLY transmitters with trainer port.

    * Other types transmitter may not supported. JR transmitters are not supported, this is not because of the glasses, but because of the JR transmitter programe setting.



    <td cols



    Binocular Display

    FOV

    30 degrees (Diagonal)

    Resolution

    854X480(WVGA),  1,229,760 color sub-pixels
