FPV 5.8G 32CH 500mW A/V Transmitter Module (TX) W/ OLED Display SKY-N500 | (SMA, jack)
    SKU SKYN05
    Added 2015/01/22
    Updated 2015/01/22
    Tags: FPV  5.8G  32CH  500mW  A  V  Transmitter  Module  (TX)  W  OLED  Display  SKY-N500  |  (SMA,  jack)


    Product Instruction
    Welcome to enjoy the Skyzone wireless AV transmiter. SkyZone products
    have forged a reputation for quality and reliability and are tested and
    developed by FPV pilots for FPV pilots.
    The SKY-N500 Transmitter packs a whopping 500mW of ultra clean 5.8GHz
    power! A must for those looking for long er range and locked in video. The
    N500 can transmit a full range of 32 channels and comes with a clean
    pre-wired harness, it’s perfect for any long range aircaft!
    The SKY-N50 boast an impressive new feature, the transmitting band and
    channel can be changed remotely by the user with a 3 position switch on their
    radio. This means you can quickly change to a clear band and frequency
    should you encounter interference on your existing channel.

     128x64 super bright color digital display with High Brightness & Contrast , clearly visible under the sun
     Channel and Frequency clearly visible on screen
     Output power 500mw, distance no less than 1Km with 2dbi Omni directional antenna
     Suport 2-6S battery and low battery alarm
     Battery Voltage display
     Screen Display: Curent/Temperature/PA Power detecion


    FPV 5.8G 32CH 500mW A/V Transmitter Module (TX) W/ OLED Display SKY-N500 | (SMA, jack)

    Antenna connector: SMA  jack (module side)   Refer to here for connector type diagram

    *Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.

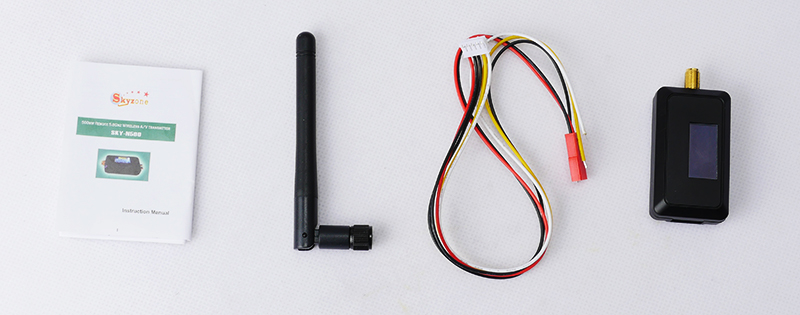

    1 x transmitting unit (TX)
    1 x TX antenna (2db)
    1 x DIY input wires

    1 x receiving unit (RX)
