FOXEER LEGEND 1 1080P 60fps HD Camera (suit for Mini FPV like QAV250 ZMR250 etc)
    Manual Manual 1
    Added 2015/11/29
    Updated 2016/02/15
    Tags: FOXEER  LEGEND  1  1080P  60fps  HD  Camera  (suit  for  Mini  FPV  like  QAV250  ZMR250  etc)


    The FOXEER action camera is tiny and light at only 49g. It's equipped with an Ambarella A7LS processor and 16MP Sony Exmor R BSI CMOS Sensor. Using 7G optical glass lens of 166 ultra-wide angle, it also has wide, normal, narrow options for selection. 1080P 60 frames per second recording allows you to capture every moment perfectly. You can capture 16MP still photos or time lapse photos at set intervals from 3 to 60 seconds.

    The camera features exclusive R&D UAV wireless control capturing technology, you can wirelessly activate the photo/video functions by UAV remote controller (RC handset). recommend class 10 or above Sandisk MicroSD card.


    • Ambarella A7LS processor
      The Ambarella A7LS Processor guarantees ultra high speed pixel processing, enhanced dynamicrange and outstanding color fidelity images.

    • Sony IMX206
      The 16MP Sony Exmor R BSI CMOS Sensor reduces the noise and increases the light sensitivity of the camera. Record every epic moment, even in dark environments. Never worry again about missing a great moment, whether light or dark.

    • 1080P60fps
      FOXEER action camera meets your demand for different image/video quality since it has multiple modes, 1296P30F, 1080P60F, 1080P30F, 720P120F, 720P60F, 720P30F. You can also create time lapse videos easily.

    • UAV remote control
      Featured by exclusive R&D UAV wireless control capturing technology, you can wireless activate the photo/ video by UAV remote controller.

    • 7G Optical Glass Lens / F2.5 Large Aperture 166° Ultra Wide Angle

    • Tiny and light weight
      Only 49 grams

    • High Efficiency Battery
      850mah Lithium Polymer


    FOXEER LEGEND 1  1080P 60fps HD Camera (suit for Mini FPV like QAV250 ZMR250 etc)

    Foxeer Legend 1
    ImageType1/2.33 CMOS 16.37 MP (Sony IMX206)
    SensorEffective PixelsApprox. 16.35 Mega Pixels (4672 * 3500)
     Output PixelsApprox. 16.76 Mega Pixels
    LensFocal LengthLens f= 3mm
    F No.F= 2.5
    F.O.V(D)166(H=120 V=89)
    ExposureControlProgrammed AE
    Compensation2EV (0.33 EV steps)
    ISO EquivalentAuto, 100, 200, 400, 800, 1600
    White BalanceAuto / Cloudy / Daylight / Incandescent
    ShootingStill ImageModes: Single Image up to 16M
    FHD 1080P1206P: 2304*1296P 30fps
    1080P: 1920*1080P 60/30 fps
    720P: 1280*720P 120/60/30 fps
    FOVWide / Normal / Narrow
    AudioMic and Speaker (Mono) Equipped
    StorageMediaInternal memory: no internal memory
    External memory: supporting SDHC Card up to 64GB
    File FormatPhoto : JPEG
    Audio : PCM 48KHZ 16bit
    Video : H.264 High Profile Level 4.2 MP4
    Image Size 5Mp16M(4608x3456)
    Video OutputHDMI: Support 1920X1080P60 output With CEC
    Composite: NTSC/PAL
    Time Lapse FunctionVideo: OFF / 1 Seconds / 2 Seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Seconds
    Photo FunctionsAuto Shooting :OFF / 3 Seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Seconds
    InterfaceUSB 2.0 : Recharging/File Transfer
    Power SourceLi-ion rechargeable Battery 850 mAH
    AccessoriesUSB Cable, AV Cable
    Dimensions (W*H*D)L: 75mm, W: 37.5mm, H:17mm
    SupportMass Storage Driver
    Windows XP(Service pack 2) or later
    Mac OS X 10.4.11 or later
    System Requirements
    For Windows*PC with processor better than Pentium 4 3.2GHz
    *Windows XP(Service pack 2) or later
    *Minimum 1 GB System RAM
    *Minimum 256 MB RAM Video Card
    *USB port, CD-ROM drive
    *1024*768 pixels, 32-bit color display compatible monitor

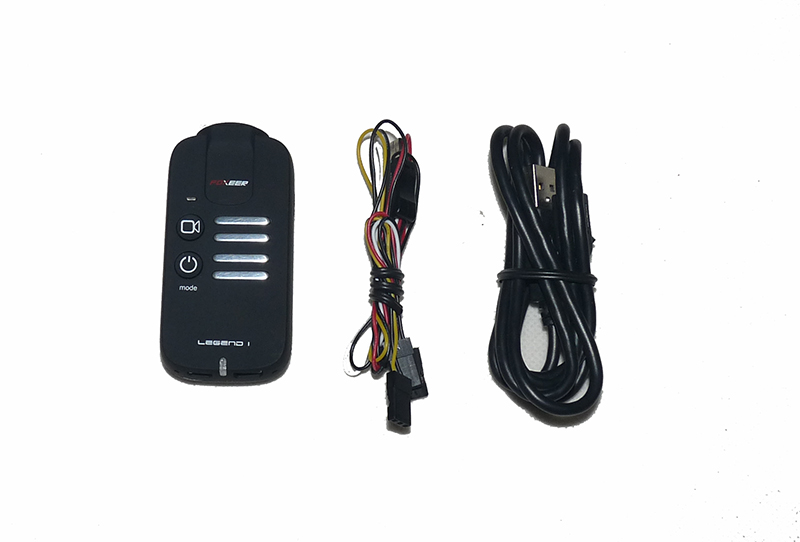

    1X Foxeer HD 60fps camera
    1X USB cable
    1X video Cable

    * SD card is NOT included.
