DJI Zenmuse Z15-5D 3-Axis gimbal for Canon 5D Mark II/5D Mark III
    SKU Z155D2
    Brand DJI
    Added 2015/04/20
    Updated 2015/04/20
    Tags: DJI  Zenmuse  Z15-5D  3-Axis  gimbal  for  Canon  5D  Mark  II  5D  Mark  III

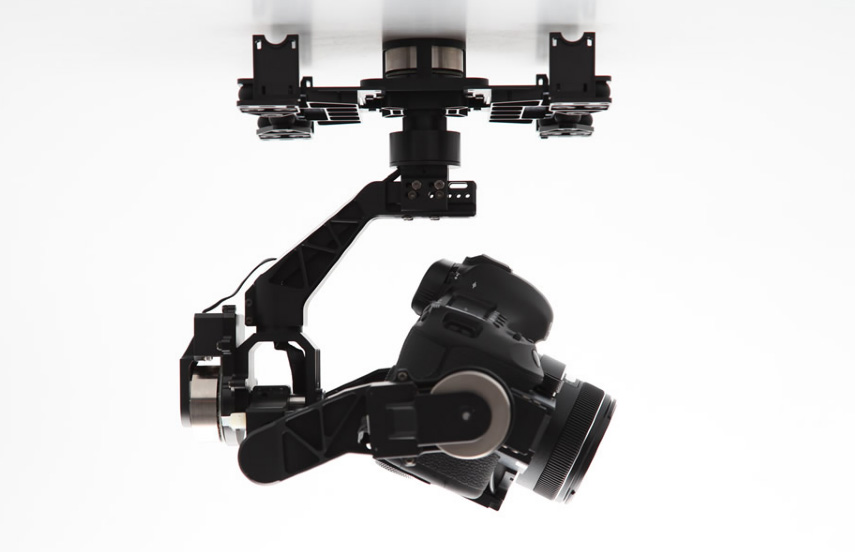

    DJI Zenmuse Z15-5D 3 Axis gimbal for Canon 5D Mark II/5D Mark III

    DJI Zenmuse Z15-5D 3 Axis Gimbal, based on the technology of the Zenmuse Z15 series gimbal, inherited its predominant strength/weight ratio because of its unique structural design. This release marks another breakthrough in gimbal systems and the precision range of the control angle is within ±0.02°. When used with DJI A2 professional flight controller and an Octo-copter, it will remain stable and precisely with the highest level of stability in controlling any camera equipment even if the aircraft is in strong wind or at high speed. Undeniably, it is the top choice in professional filming or aerial photography.

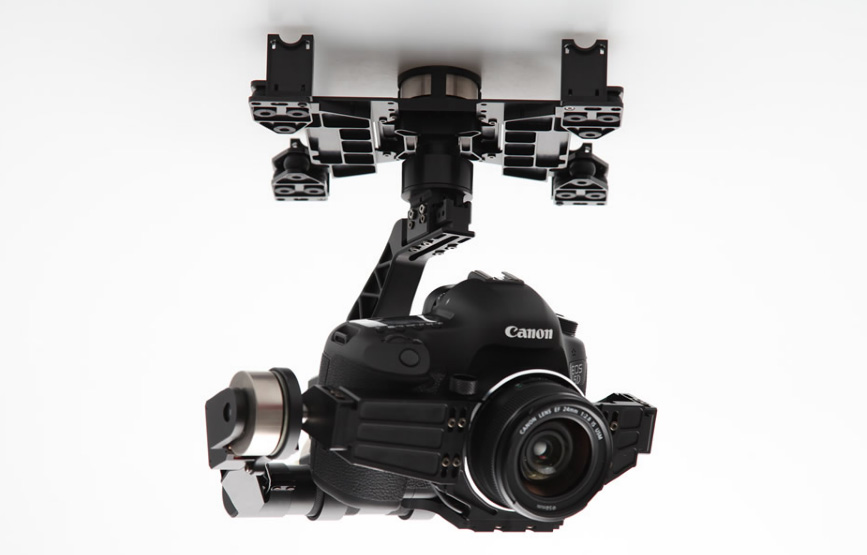

    Customized Gimbal Design For The Canon 5D Mark III/ 5D Mark II

    In order to ensure the gimbal functions at its best and submits nothing but industry level images, DJI provides a customized Gimbal in accordance with the latest in camera technology… the Zenmuse Z15-5D Gimbal is customized for the Canon 5D Mark III and Canon 5D Mark II for example. The Canon 5D series camera has been providing an unparalleled customer experience as it offers excellent video quality and a variety of recording formats, bit rates and frame rates… and with up to 1920×1080/24P shooting ability, the Canon 5D is a perfect camera for all in the world of aerial photography.


    Multiple Control Modes

    The Zenmuse Gimbal system offers three types of control modes. Orientation-locked control mode, Non Orientation-locked control mode and Back to Mid-point mode (Horizontal mode). These three modes can be switched both quickly and easily to support the many different requirements of aerial photography.


    3-Axis Rotation Control

    The 3-axis Zenmuse Gimbal system has a creative mechanical design. The control method is simple and easy to use as the movement range of the transmitter stick has direct control over the relative rotation speed. The tail potentiometer greatly increases control, stability and precision, and the internal slip rings avoid needlessly complicated wiring. Both the power and signal lines are integrated into the tubes of the Gimbal, which presents a completely unhindered control axis without limitation providing a maximum Yaw of ±360°, a maximum Pitch of -120°to +15°and a maximum Roll of ±25°.

    Built-In Independent Imu Module And Infrared Module

    Our new stabilizing algorithm represents the latest in innovation which, together with our highly-precise induction devices, provides perfect performance of attitude control. This integration means that without the requirement of extra installation and connection of extra wires, it is both easy to assemble and extremely stable during flight. The gimbal also provides a specially designed and customized video output module, which includes an infrared shutter control function.

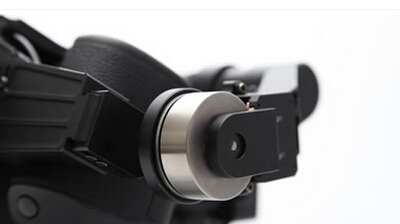

    Gimbal Servo Drive Module

    Due to our special DJI Customized Gimbal Servo Drive Module, the Zenmuse series of Gimbals offers excellent high precision control characteristics. With high precision, low vibration and high torque characteristics, this module provides additional quality stabilizing features.

    A Total Solution

    The Zenmuse Z15-5D Gimbal system is a perfect match to the DJI Spreading Wings S1000 Octo-copter flight platform/DJI S9000 Hexcopter flight platform and other DJI products such as the A2 and WooKong-M flight controllers for multi-rotor. Combined with the iOSD Mark II and the 5.8G video link, all together make up DJI's Total Solution, which allowing you to enjoy a convenient, professional and complete aerial photography experience.


    DJI Z15-5D Gimbal has the Built-in Functions:

    Three Working Modes
    · Orientation-locked control
    · Non orientation-locked control
    · FPV mode (Reset)
    Built-in independent IMU module
    DJI gimbal special servos drive module
    Wireless video transmission supported
    Camera shutter control supported
    Wide range voltage input supported
     S-Bus/PPM Receiver supported


    DJI Zenmuse Z15-5D 3-Axis gimbal for Canon 5D Mark II/5D Mark III


    Supported Camera
    Current Supported Lens
    CANON EF 24mm f/2.8 IS USM
    GCU Input Power
    4S~12S LiPo Battery
    Control Requirement
    Four spare receiver channels at least
    Assistant Software System Requirement
    Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)

    Mechanical & Electrical Characteristics

    Working Current
    Static current: 200mA (@25V)
           Dynamic current: 400mA (@25V)
         Locked-rotor current: 4A (@25V)
    Operating Temperature
    -10°C ~ 50°C
    204mm × 242mm × 264mm
    GCU Weight
    GCU Dimensions
    64.2 mm ×34.1mm ×19.5mm

    Working Performance

    Load Weight (Reference Value)
    2615g(5D MARK II with SD Card & Battery & CANON EF 24mm f/2.8 IS USM Lens)
         2664g(5D MARK III with SD Card & Battery & CANON EF 24mm f/2.8 IS USM Lens)
    Controlled Angle Accuracy
    Maximum Controlled Rotation Speed
    Pan axis: ±90°/s
           Tilt axis: ±130°/s
         Roll axis: ±30°/s
    Controlled Rotation Range
    Pan axis control: ±360° continuous rotation
           Tilt axis control: From -120° to +15°
         Roll axis control: ±25°


    1x  DJI Zenmuse Z15-5D 3-Axis gimbal

    * This is the gimbal only,  Camera or drone are NOT included.
