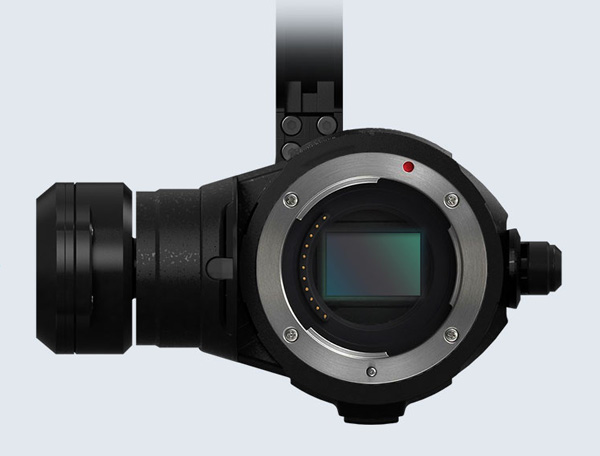

DJI Zenmuse X5 Gimbal 4K Video 16MP Camera 30 FPS W/O Lens for Inspire 1 Pro
    SKU X5PART1
    Brand DJI
    Added 2015/11/11
    Updated 2015/11/11

    Tags: DJI  Zenmuse  X5  Gimbal  4K  Video  16MP  Camera  30  FPS  Inspire  1  Pro

    Features:

    THE NEXT EVOLUTION OF AERIAL CAMERAS
    With the Zenmuse X5 series, you have the world's first set of Micro Four Thirds cameras built specifically for aerial photography and cinematography. Bringing unparalleled imaging quality together with integrated 3-axis gimbal stabilization and remarkable ease of use, each empowers you to shoot and complete jobs like never before.


    Features:
    4K video at up to 30fps
    Record at 4096×2160 (24fps) or 3840×2160 (30/25fps)
    16MP photographs
    12.8 stops of dynamic range

    Note

    • When using the Zenmuse X5 Series cameras, it is necessary to replace the original vibration absorbing board designed for the Inspire 1's standard Zenmuse X3 camera with the Zenmuse X5 Vibration Absorbing Board.

    Specifications:

    DJI Zenmuse X5 Gimbal 4K Video 16MP Camera 30 FPS W/O Lens for Inspire 1 Pro


    Zenmuse X5

    General

    Dimensions

    120mm (W) x 135mm (H) x 140mm (D)

    Weight (Standard Lens, Balancing Ring, Lens Hood, Micro SD Card Included)

    526 g

    Static Output Power

    8 W

    Peak Output Power

    13W

    Operating Temperature

    32° to 104° F (0° to 40° C)

    Camera

    Lens

    Replaceable lens
    M43 mount supporting auto-focus  (Lens NOT included)

    Supported Lenses

    DJI MFT 15mm f/1.7 ASPH
    Panasonic Lumix 15mm f/1.7
    Olympus M. ED 12mm f/2.0

    Sensor

    4/3-inch CMOS sensor

    Effective Pixels

    16M

    Max Resolution

    4608x3456

    ISO Range

    100~25600

    Electronic Shutter Speed

    8 to 1/8000 s

    Field Of View (FOV)

    15mm/ f1.7:72°
    12mm/ f2.0:84°

    Still Photography Modes

    Single shot
    Burst shooting: 3/5/7 frames
    Auto Exposure Bracketing: 3/5 bracketed frames at 0.7EV bias
    Time-lapse (3/5/7/10/20/30/60 sec)

    Video Resolution

    UHD: 4096×2160 (24/25p); 3840×2160 (25/30p); 2704x1520 (25/30p)

    Max Video Bitrate

    60 Mbps

    Supported File Formats

    FAT32 / exFAT
    Photo: JPEG, DNG
    Video: MP4, MOV (MPEG-4/AVC/H.264F)

    Supported Storage Devices

    Class 10 or UHS-1 or above Micro SD cards
    Max capacity of 64 GB

    Default Lens

    Name

    DJI MFT 15mm f/1.7 ASPH

    Focal Length

    f=15 mm (35 mm film camera equivalent: 30 mm)

    Aperture Type

    7 diaphragm blades/circular aperture diaphragm

    Maximum Aperture

    F1.7

    Minimum Aperture Value

    F16

    Lens Construction

    9 elements in 7 groups (3 aspherical elements)

    In Focus Distance

    0.2 m to ∞ (from the focus distance reference line)

    Mount

    Micro 4/3

    Field Of View (FOV)

    72°

    Max. Diameter

    Approx. 57.5 mm

    Overall Length

    Approx. 36 mm

    Mass

    Approx. 115 g

    Gimbal

    Model

    Zenmuse X5

    Angular Vibration Range

    ±0.02°

    Mount

    Detachable

    Controllable Range

    Pitch: -90° to +30°
    Pan: ±320°

    Max Controllable Speed

    Pitch: 120°/s
    Pan: 180°/s


    Includes/Requires:

    Includes:
    1 x Zenmuse X5 Gimbal 4K Video 16MP Camera  (without lens)
