SKU | DJIZX5 |
---|---|
Brand | DJI |
Added | 2015/11/11 |
Updated | 2015/11/11 |
Features:
THE NEXT EVOLUTION OF AERIAL CAMERASWith the Zenmuse X5 series, you have the world's first set of Micro Four Thirds cameras built specifically for aerial photography and cinematography. Bringing unparalleled imaging quality together with integrated 3-axis gimbal stabilization and remarkable ease of use, each empowers you to shoot and complete jobs like never before.
Features:
4K video at up to 30fps
Record at 4096×2160 (24fps) or 3840×2160 (30/25fps)
16MP photographs
12.8 stops of dynamic range
Note
- When using the Zenmuse X5 Series cameras, it is necessary to replace the original vibration absorbing board designed for the Inspire 1's standard Zenmuse X3 camera with the Zenmuse X5 Vibration Absorbing Board.
Specifications:

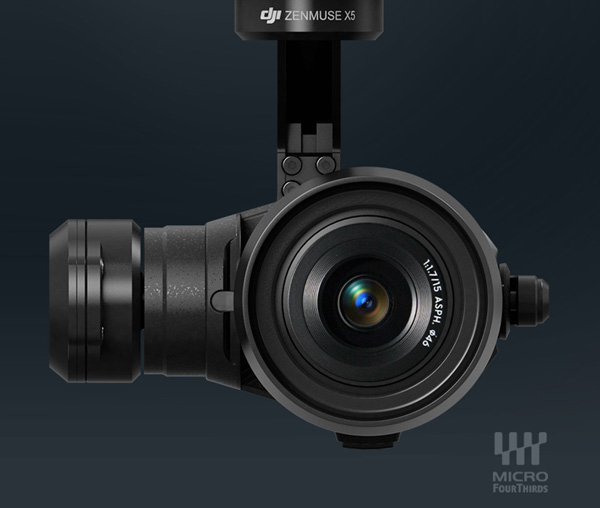

DJI Zenmuse X5 Gimbal 4K Video 16MP Camera 30 FPS W/ Lens for Inspire 1 Pro
Zenmuse X5 | ||
General | Dimensions | 120mm (W) x 135mm (H) x 140mm (D) |
Weight (Standard Lens, Balancing Ring, Lens Hood, Micro SD Card Included) | 526 g | |
Static Output Power | 8 W | |
Peak Output Power | 13W | |
Operating Temperature | 32° to 104° F (0° to 40° C) | |
Camera | Lens | Replaceable lens |
Supported Lenses | DJI MFT 15mm f/1.7 ASPH | |
Sensor | 4/3-inch CMOS sensor | |
Effective Pixels | 16M | |
Max Resolution | 4608x3456 | |
ISO Range | 100~25600 | |
Electronic Shutter Speed | 8 to 1/8000 s | |
Field Of View (FOV) | 15mm/ f1.7:72° | |
Still Photography Modes | Single shot | |
Video Resolution | UHD: 4096×2160 (24/25p); 3840×2160 (25/30p); 2704x1520 (25/30p) | |
Max Video Bitrate | 60 Mbps | |
Supported File Formats | FAT32 / exFAT | |
Supported Storage Devices | Class 10 or UHS-1 or above Micro SD cards | |
Default Lens | Name | DJI MFT 15mm f/1.7 ASPH |
Focal Length | f=15 mm (35 mm film camera equivalent: 30 mm) | |
Aperture Type | 7 diaphragm blades/circular aperture diaphragm | |
Maximum Aperture | F1.7 | |
Minimum Aperture Value | F16 | |
Lens Construction | 9 elements in 7 groups (3 aspherical elements) | |
In Focus Distance | 0.2 m to ∞ (from the focus distance reference line) | |
Mount | Micro 4/3 | |
Field Of View (FOV) | 72° | |
Max. Diameter | Approx. 57.5 mm | |
Overall Length | Approx. 36 mm | |
Mass | Approx. 115 g | |
Gimbal | Model | Zenmuse X5 |
Angular Vibration Range | ±0.02° | |
Mount | Detachable | |
Controllable Range | Pitch: -90° to +30° | |
Max Controllable Speed | Pitch: 120°/s |
Includes/Requires:
Includes:1 x Zenmuse X5 Gimbal 4K Video 16MP Camera
