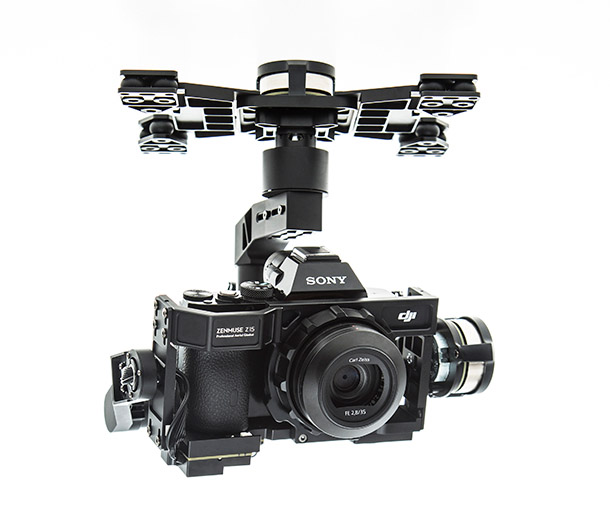

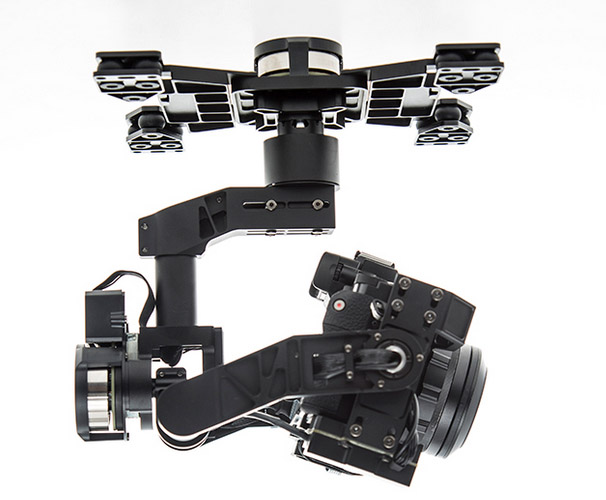

DJI Z15-A7 Gimbal (Suit for Sony A7S/ A7R)
    SKU Z15-A7
    Brand DJI
    Added 2015/05/08
    Updated 2015/05/08
    Tags: DJI  Z15-A7  Gimbal  Sony  A7S  A7R


    Zenmuse Z15-A7 Features

    Achieve Low-Light Aerial Creativity
    Unmatched Zenmuse Precision and Stability
    Streaming Video
    Complete 360° Control
    Fully Compatible Solution
    Multiple Control Modes
    Gimbal Servo Drive Module
    Built-In Independent IMU Module and Infrared Module


    DJI Z15-A7 Gimbal (Suit for Sony A7S/ A7R)

    GeneralBuilt-In Functions1. Three Modes
      - Orientation-locked control
    - Non orientation-locked control
    - FPV mode (Reset)
    2. Built-in independent IMU module
    3. DJI gimbal special servos drive module
    4. HDMI-HD/AV module
    5. Infrared remote control module
    6. Wireless video transmission supported
    7. Camera shutter/video recording control supported
    8. Wide range voltage input supported
    9. S-Bus Receiver supported
    PeripheralSupported CameraSony ILCE-7S; Sony ILCE-7R
     Supported LensSony FE 35 mm f2.8 ZA
    GCU Input Power4S~12S LiPo (Recommend 6S if with S1000+)
    Control RequirementAt least four spare receiver channels
    Assistant Software System RequirementsWindows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
    Mechanical & Electrical CharacteristicsWorking CurrentStatic current: 200 mA (@25 V)
      Dynamic current: 400 mA (@25 V)
    Locked-motor current: 4 A (@25 V)
    Operating Temperature-10¢XC ~ 50¢XC
    Weight1.3 Kg
    GCU Weight63g
    GCU Dimensions64.2 mm ×34.1mm ×19.5mm
    Working PerformanceLoad Weight (Reference Value)622 g(@Sony ILCE-7S with Sony FE 35 mm f2.8 ZA, battery, lens hood and SD Card)
      580 g(@Sony ILCE-7R with Sony FE 35 mm f2.8 ZA, battery, lens hood and SD Card)
    Angular Vibration Range±0.01°
    Maximum Controlled Rotation SpeedPan axis: ±130°/s
     Tilt axis: ±130°/s
    Roll axis: ±30°/s
    Controlled Rotation RangePan axis control: ±360° continuous rotation
     Tilt axis control: +50°/-140°
    Roll axis control: ±40°


    1x  DJI Z15-A7 Gimbal

    * This is the gimbal only,  Camera or drone are NOT included.
