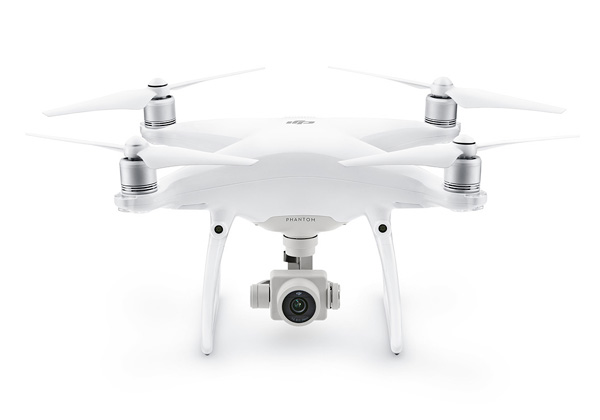

DJI PHANTOM 4 PRO+ PLUS DRONE w/ Gimbal Camera 1" CMOS Sensor 4K + 5.5" DISPLAY
    SKU PHAN4-PRO2
    Brand DJI
    Added 2016/12/08
    Updated 2016/12/08

    Tags: DJI  PHANTOM  4  PRO+  PLUS  DRONE  w  Gimbal  Camera  1"  CMOS  Sensor  4K  +  5.5"  DISPLAY

    Features:


    Specifications:

    DJI Phantom 4 Quadcopter w/ 4K HD Camera & Gimbal

    AIRCRAFT

    Weight (Battery & Propellers Included)1388 g
    Diagonal Size (Propellers Excluded)350 mm
    Max Ascent SpeedS-mode: 6 m/s; P-mode: 5 m/s
    Max Descent SpeedS-mode: 4 m/s; P-mode: 3 m/s
    Max Speed45 mph (72 kph) (S-mode); 36 mph (58 kph) (A-mode); 31 mph (50 kph) (P-mode)
    Max Tilt Angle42° (S-mode); 35° (A-mode); 25° (P-mode)
    Max Angular Speed250°/s (S-mode); 150°/s (A-mode)
    Max Service Ceiling Above Sea Level19685 ft (6000 m)
    Max Flight TimeApprox. 30 minutes
    Operating Temperature32° to 104° F ( 0° to 40° C)
    Satellite Positioning SystemsGPS/GLONASS
    GPS Hover Accuracy RangeVertical: ±0.1 m (With Vision Positioning); ±0.5 m (With GPS Positioning)
    Horizontal: ±0.3 m (With Vision Positioning); ±1.5 m (With GPS Positioning)

    VISION SYSTEM

    Velocity Range≤31 mph (50 kph) at 6.6 ft (2 m) above ground
    Altitude Range0 – 33 ft (0 – 10 m)
    Operating Range0 – 33 ft (0 – 10 m)
    Obstacle Sensory Range2 – 98 ft (0.7 – 30 m)
    FOV60°(Horizontal), ±54°(Vertical)
    Detection Frequency10Hz
    Operating EnvironmentSurfaces with clear patterns and adequate lighting (> 15 lux)

    CAMERA

    Sensor1" CMOS; Effective pixels: 20M
    LensFOV (Field of View) 84°, 8.8 mm / 24 mm (35 mm format equivalent),
    f/2.8 - f/11.
    auto focus at 1 m - ∞
    ISO RangeVideo: 100 - 3200 (Auto); 100 - 6400 (Manual)
    Photo: 100 - 3200 (Auto); 100- 12800 (Manual)
    Mechanical Shutter8 - 1/2000 s
    Electronic Shutter1/2000 - 1/8000 s
    Max Image Size3:2 Aspect Ratio: 5472 × 3648
    4:3 Aspect Ratio: 4864 × 3648
    16:9 Aspect Ratio: 5472 × 3078
    PIV Image Size・4096 × 2160 (4096 × 2160 24/25/30/48/50p)
    ・3840 × 2160 (3840 × 2160 24/25/30/48/50/60p)
    ・2720 × 1530 (2720 × 1530 24/25/30/48/50/60p)
    ・1920 × 1080 (1920 × 1080 24/25/30/48/50/60/120p)
    ・1280 × 720 (1280 × 720 24/25/30/48/50/60/120p)
    Still Photography ModesSingle Shot
    Burst Shooting: 3/5/7/10/14 frames
    Auto Exposure Bracketing (AEB): 3/5 bracketed
    frames at 0.7EV Bias
    Interval: 2/3/5/7/10/15/30/60 s
    Video Recording ModesH.265
    ・C4K:4096×2160 24/25/30p @100Mbps
    ・4K:3840×2160 24/25/30p @100Mbps
    ・2.7K:2720×1530 24/25/30p @65Mbps

    2720×1530 48/50/60p @80Mbps
    ・FHD:1920×1080 24/25/30p @50Mbps

    1920×1080 48/50/60p @65Mbps

    1920×1080 120p @100Mbps

    ・HD: 1280×720 24/25/30p @25Mbps

    1280×720 48/50/60p @35Mbps

    1280×720 120p @60Mbps


    H.264
    ・C4K:4096×2160 24/25/30/48/50/60p @100Mbps
    ・4K:3840×2160 24/25/30/48/50/60p @100Mbps
    ・2.7K:2720×1530 24/25/30p @80Mbps

    2720×1530 48/50/60p @100Mbps
    ・FHD:1920×1080 24/25/30p @60Mbps

    1920×1080 48/50/60 @80Mbps

    1920×1080 120p @100Mbps
    ・HD: 1280×720 24/25/30p @30Mbps

    1280×720 48/50/60p @45Mbps

    1280×720 120p @80Mbps
    Video Storage Bitrate100 Mbps
    Supported File SystemsFAT32 (≤ 32 GB); exFAT (> 32 GB)
    PhotoJPEG, DNG (RAW), JPEG + DNG
    VideoMP4/MOV (AVC/H.264;HEVC/H.265)
    Supported SD CardsMicro SD, Max Capacity: 128GB.
    Write speed ≥15MB/s, class 10 or UHS-1 rating required
    Operating Temperature32° to 104° F (0° to 40° C)

    CHARGER

    Voltage17.4 V
    Rated Power100 W

    GIMBAL

    Stabilization3-axis (pitch, roll, yaw)
    Controllable RangePitch: -90° to +30°
    Max Controllable Angular SpeedPitch: 90°/s
    Angular Control Accuracy±0.01°

    INFRARED SENSING SYSTEM

    Obstacle Sensory Range0.6 – 23 ft (0.2 – 7 m)
    FOV70° (Horizontal), ±10° (Vertical)
    Detection Frequency10 Hz
    Operating EnvironmentSurface with diffuse reflection material,
    and reflectivity > 8% (such as wall, trees, humans, etc.)

    REMOTE CONTROLLER

    Operating Frequency2.400 - 2.483 GHz and 5.725 - 5.825 GHz
    Max Transmission Distance2.400 GHz - 2.483 GHz(Unobstruoted, free of interference)
    FCC: 4.3mi (7km);
    CE: 2.2mi (3.5km);
    SRRC: 2.5mi (4 km)
    5.725 GHz - 5.825 GHz(Unobstruoted, free of interference)
    FCC: 4.3mi (7km);
    CE: 1.2mi (2 km);
    SRRC: 2.5mi (4 km)
    Operating Temperature32° to 104° F (0° to 40° C)
    Battery6000mAh LiPo 2S
    Transmitter Power (EIRP)2.400 GHz - 2.483 GHz
    FCC: 26 dBm; CE: 17 dBm; SRRC: 20 dBm
    5.725 GHz - 5.825 GHz
    FCC: 28 dBm; CE: 14 dBm; SRRC: 20 dBm
    Operating Voltage1.2 A @7.4 V
    Video Output PortGL300E: HDMI,USB
    GL300F: USB
    Mobile Device HolderGL300E:Built-in display device (5.5 inch screen, 1920×1080,
    1000 cd/m2, Android system, 4G RAM+16G ROM)
    GL300F:Tablets and smart phones

    INTELLIGENT FLIGHT BATTERY (PH4-5870MAH-15.2V)

    Capacity5870 mAh
    Voltage15.2 V
    Battery TypeLiPo 4S
    Energy89.2 Wh
    Net Weight468 g
    Charging Temperature Range14° to 104° F (-10° to 40° C)
    Max Charging Power100 W

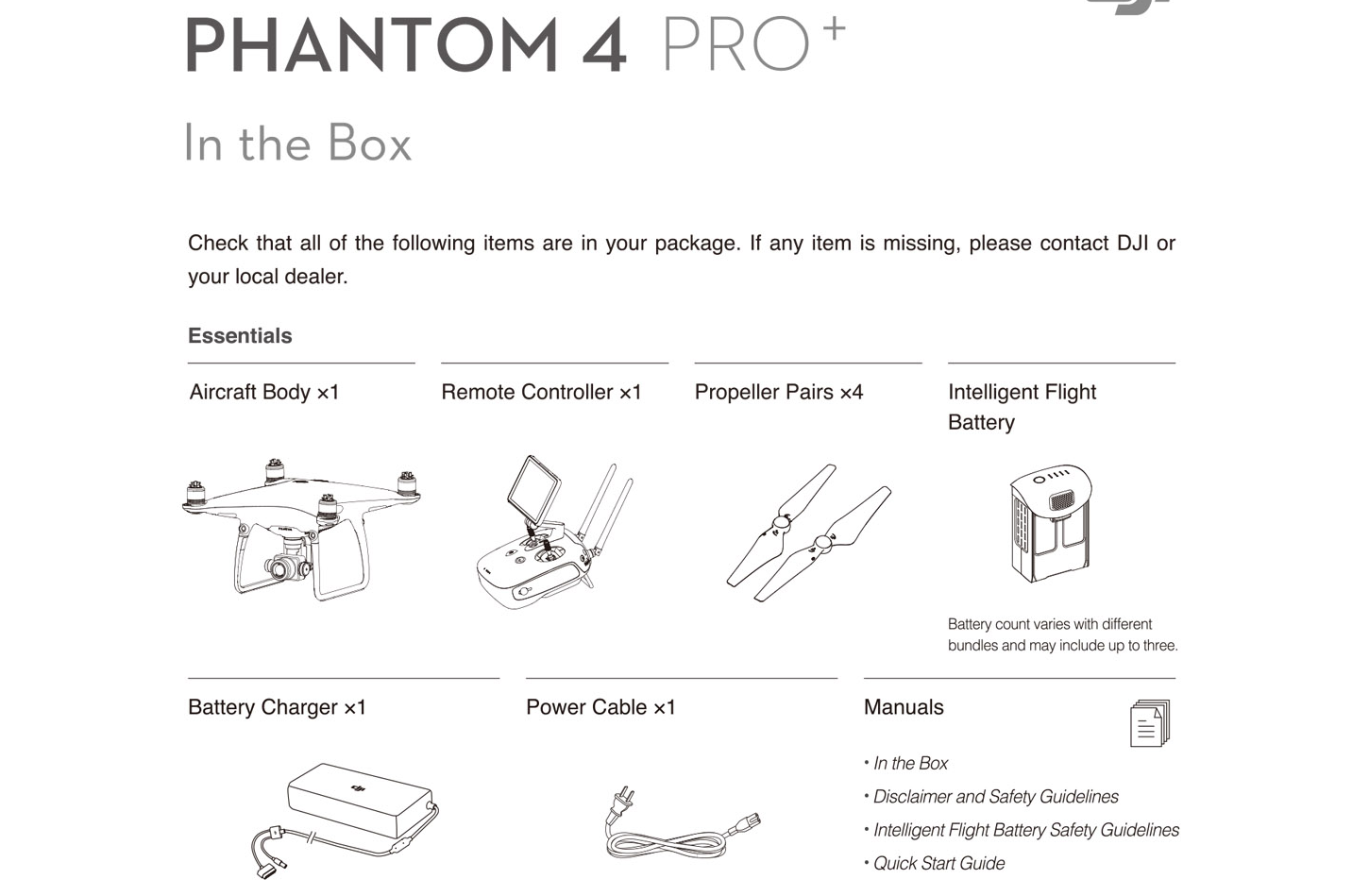

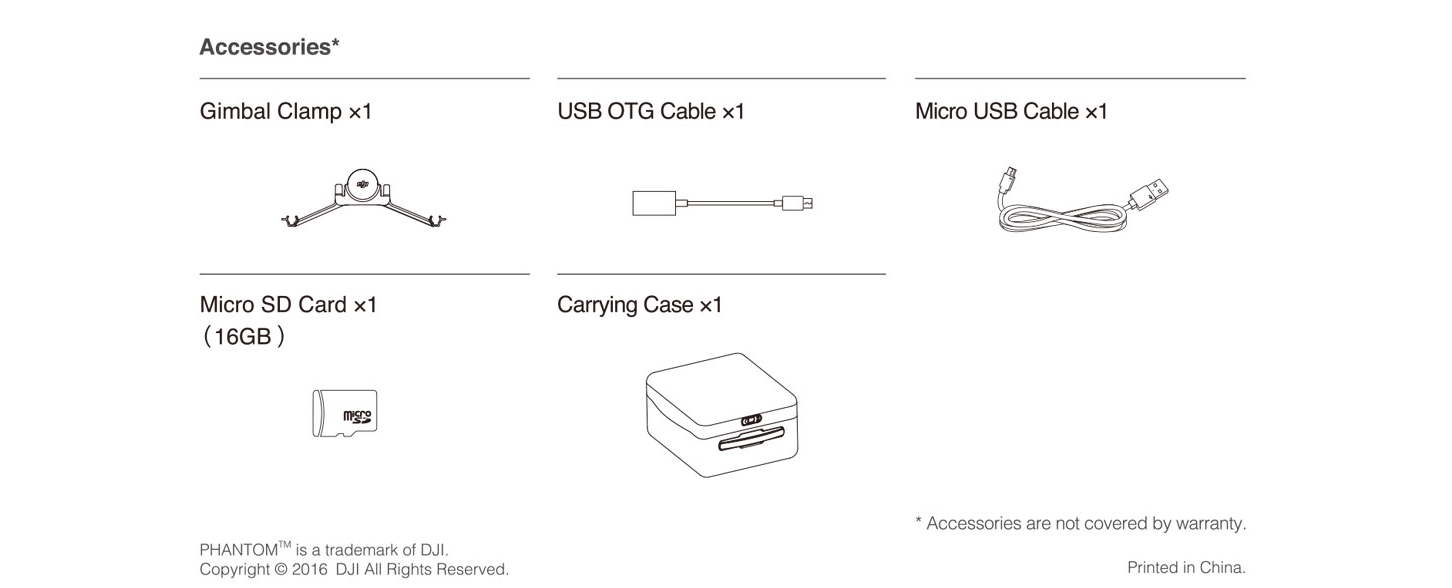

    Includes/Requires:

    Includes:






    * Battery number included: 1pc.
