Guidance is a revolutionary visual sensing system. With a powerful processing core, integrated visual cameras, ultrasonic sensors, and the most advanced computer vision algorithms in the world, Guidance protects your platform and gives you a new level of safety and confidence in flight. Guidance includes five sensor modules and one central processor.

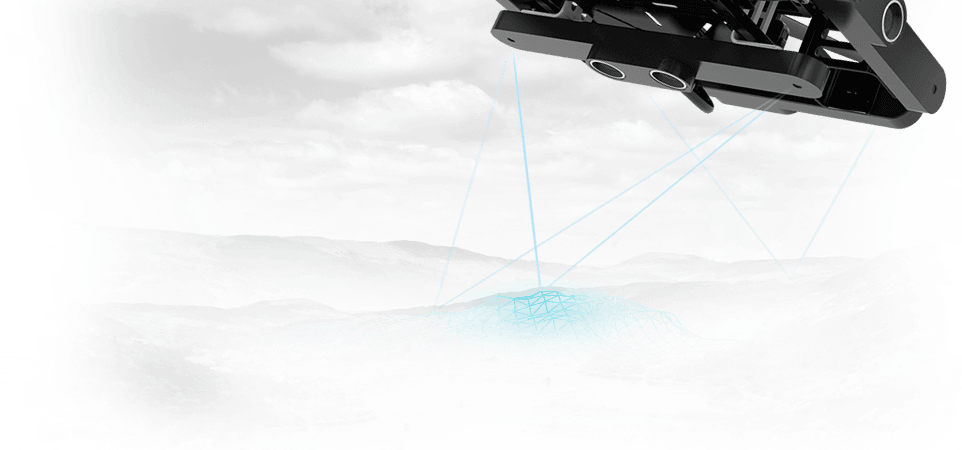

High-Precision Vision Positioning
Even without GPS, achieve hovering that is accurate to within centimeters.
Even when flying at high speeds, high-precision stereo algorithms provide positioning information over nearly any terrain.
Guidance’s vision positioning system is effective at altitudes of up to 65 feet (20 meters).
Obstacle Sensing in Every Direction
Guidance continuously scans the nearby environment and detects obstacles in real time. When used with a DJI flight controller, it can tell your flight system to automatically avoid collision, even at high speeds.
DJI Matrice 100 M100 Quadcopter Drone Platform
|Dimensions||Guidance Core: 78.5 mm x 53.5 mm x 14 mm|
|Guidance Sensor: 170 mm x 20 mm x 16.2 mm|
|VBUS Cable: 200mm|
|Weight||Guidance Core: 64 g|
|Guidance Sensor (single): 43 g|
|VBUS Cable (single)：11.6g|
|0~16 m/s (From the ground 2 m) (The measurement shall prevail)|
|0.04 m/s (From the ground 2 m)|
|0.05 m (From the ground 2 m)|
|0.20 m ~ 20 m|
|Texture-rich surface with clear patterns|
|Max. 12 W (with all five Guidance Sensors)|
|Input Voltage||11.1 V~25 V|
|-10°C ~ 40°C|
|System Interfaces||VBUS ✕ 5|
|CAN ✕ 1|
|USB OTG 2.0 ✕ 1|
|UART ✕ 1|
