DJI Focus Wireless Follow for Ronin Ronin-M Zenmuse X5 X5R Camera Inspire 1 Pro
    Brand DJI
    Added 2016/02/09
    Updated 2016/02/09
    Tags: DJI  Focus  Wireless  Follow  for  Ronin  Ronin-M  Zenmuse  X5  X5R  Camera  Inspire  1  Pro

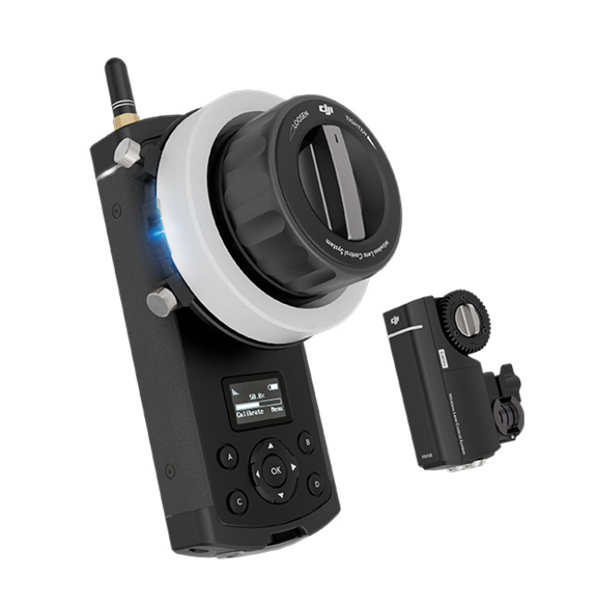

    DJI's Focus
    is a wireless follow focus that integrates natively with the Zenmuse Z5 series of camera/gimbals systems and can be mounted on rigs equipped with 15mm or 19mm rods - including the Ronin and Ronin-M gimbals. The Focus features a handheld remote controller (transmitter) with a focus knob to give to the feel of a traditional mechanical follow focus. The wireless system sports a range of up to 330' line-of-sight with a delay of only 14ms.

    Control accuracy of ±0.002°
    Self-contained drive unit combines brushless motor and receiver in a single module - simplifying installation and requiring only a single power source
    Use with Inspire 1 Quadcopter carrying Zenmuse X5 or X5R camera
    Adjustable endpoints - ideal for lenses, such as photo lenses, that lack "hard" stops
    Programmable focus points and other parameters adjustable through controller menu
    OLED display on controller for menu access and status display
    Compatible with DJI's Ronin and Ronin-M gimbals
    Works with third-party gimbals or rigs that have 15mm or 19mm rod support
    Dual communication ports for future upgrades
    Built-in rosette for greater mounting flexibility


      DJI Focus Wireless Follow for Ronin Ronin-M Zenmuse X5 X5R Camera Inspire 1 Pro


        Maximum Speed192 rpm
        Maximum Torque0.26 Lb-In / 0.35 Nm
        Mounting19 mm or 15 mm rods
        GearModule: 0.8
        Teeth: 40
        Noise<25 dB (at 96 rpm)
        Power ConsumptionStatic Current: 80 mA (at 12 V)
        Stall Current: 2.5 A (at 12 V)
        Power Requirements9 to 16 VDC
        Dimensions3.5 x 2 x 1" / 90 x 50 x 26 mm
        Weight6 oz / 170 g
        BatteryModel: FB01-554461
        Chemistry: Lithium-polymer (LiPo)
        Capacity: 1700 mAh / 6.29 Wh
        Voltage: 3.7 V
        Dimensions6 x 3.4 x 3.5" / 153 x 86 x 90 mm
        Weight1.6 lb / 745 g
        Radio System
        Frequency2.415 to 2.473 GHz
        Range328.1' / 100 m
        Transmit Power14 dBm
        Operating Temperature-4 to 131°F / -20 to 55°C



        Remote controller ×1
        Remote controller CAN-Bus cable ×1
        Marking ring ×3
        Neck strap ×1
        Micro USB cable ×1
        Hook-and-loop fastener ×1
