CYCLOPS TORNADO OSD  System W/GPS  | V1.03

Features:

1.  Adopting inertial navigation gesture measuring.
2. 10Hz GPS module
3. 10 3D  way points auto-pilot.
4. Airspeed sensor, fixed altitude cruise flight.
5. Supporting Futaba S-Bus input.
6. TF card flight log-data recording supported (TF card is not included)
7. Low power RTH

Specifications:

CYCLOPS TORNADO OSD  System W/GPS

Power input: 12V / 3S Lipo
Weight: 88g
Current sensor: 30V, 100A
GPS rate: 10Hz
Dimension: 75.3 x 44 x 15mm

Includes/Requires:

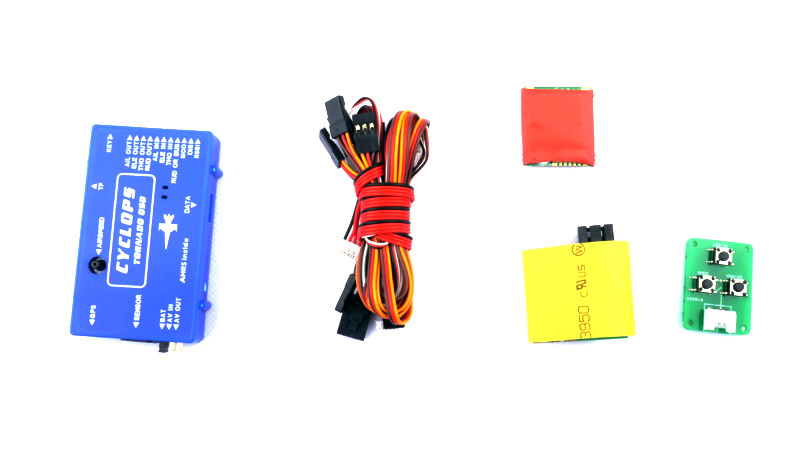

Includes:

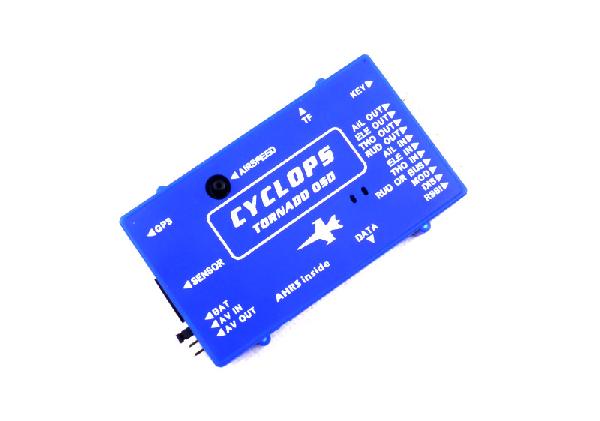

1x  Tornado OSD main board
1x 100A current sensor module
1x GPS module 10Hz
1x configuration button board
all related wire cable included


* No printed manual come with this product, refer to Electric version instruction manual . .

Comments:

Resources:

Firmware upgrading:

1/15/2014     V1.01 firmaware, upgrading software & manual .
