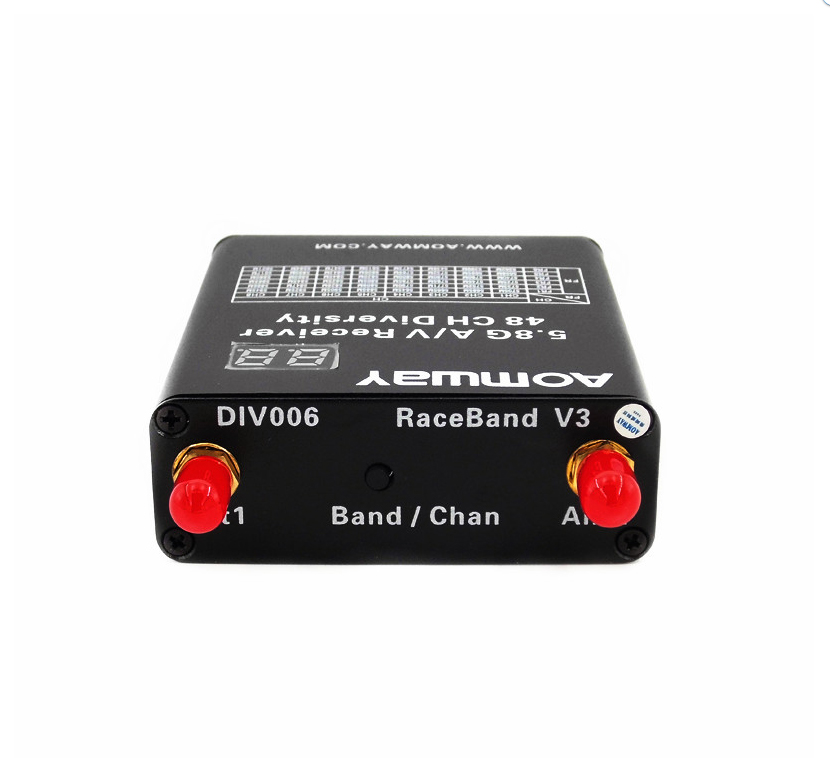

AOMWAY 5.8G 48CH Race Band Diversity Receiver (VRX) W/ DVR
    SKU DIV006
    Brand AOMWAY
    Added 2018/08/07
    Updated 2018/08/07

    Tags: AOMWAY  5.8G  48CH  Dual  Antenna  FPV  Receiver  (VRX)  W  DVR

    Features:

    This 5.8Ghz 48CH True Diversity Receiver can do auto-detect and always select the antenna
    with stronger signal to receiver. It comes quite neat and small-sized design, integrating DVR
    function for easy ground  station setup, no extra DVR devices needed. Band and channel selection
    simply controlled by two push buttons (auto scan available channel) while two digits display
    indicating  your band and channel status. Dual AV/Audio output also provided, one is processed
    by DVR for playback, another is DVR bypassed for low latency video. No more search, it definitely a
    perfectly featured choice for your FPV system.

    Specifications:

    AOMWAY 5.8G 48CH Race Band Diversity Receiver (VRX) W/ DVR


    Electrical:
    – Power Supply: DC 7-24V
    – Power Consumption: 210mA@DC 12V
    – Sensitivity: ≥-95dBm
    – Format: PAL/NTSC selectable via menu
    – DVR Memory: TF card up to 64GB (TF card NOT included)
    – Channel: 48CH (RaceBand included, auto save channel/band when power off)
    – Indicator: 2 digits display for band & channel
    – Channel Selection: Push ‘CH’ button 5s to start auto scan for available channel
    – Display Quality: HD D1 AVI for recording file
    – VGA for direct DVR playback
    – OSD: Control for direct playback
    – Interface: 2 x AV/Audio output 1 x SMA for antenna
    – Frequencies:
    FR1:
    CH1_5705MHz,CH2_5685MHz,CH3_5665MHz,CH4_5645MHz,
    CH5_5885MHz,CH6_5905MHz,CH7_5925MHz,CH8_5945MHz



    FR2:
    CH1_5733MHz,CH2_5752MHz,CH3_5771MHz,CH4_5790MHz,
    CH5_5809MHz,CH6_5828MHz,CH7_5847MHz,CH8_5866MHz



    FR3:
    CH1_5725MHz,CH2_5745MHz,CH3_5765MHz,CH4_5785MHz,
    CH5_5805MHz,CH6_5825MHz,CH7_5845MHz,CH8_5865MHz



    FR4:
    CH1_5740MHz,CH2_5760MHz,CH3_5780MHz,CH4_5800MHz,
    CH5_5820MHz,CH6_5840MHz,CH7_5860MHz,CH8_5880MHz



    FR5(RaceBand):
    CH1_5658MHz,CH2_5695MHz,CH3_5732MHz,CH4_5769MHz,
    CH5_5806MHz,CH6_5843MHz,CH7_5880MHz,CH8_5917MHz



    FR6:
    CH1_5362MHz,CH2_5399MHz,CH3_5436MHz,CH4_5473MHz,
    CH5_5510MHz,CH6_5547MHz,CH7_5584MHz,CH8_5621MHz



    Mechanical:
    – Outer Case: Aluminum
    – Dimension: 80 x 70 x 25 mm
    – Weight: 141 g





    Transmitter channel number: 32 channels
    Power input: 7-24V  DC
    Working current: 170mA @12V
    Sensitivity: -95dbm
    DVR:  D1 format, 720p real time A/V recording and playback.
    Video file format: AVI  (each file up to 30 minutes)
    Video format: the receiver itself compatible with both PAL and NTSC formats, but the DVR file recorded is PAL format.
    Storage card: TF card, max to 64GB (card is NOT included)
    Video ouput: two ways A/V output.   AV1 output through DVR, you can monitor the real time recording status using this output; AV2 is direct output, you can connect AAT or monitor to it.
    Transmitter unit Dimension: 80 x 70 x 25mm
    Weight: 126g (excluding antenna)
    Antenna connection: SMA  jack (modules side)   Refer to here for connector type diagram





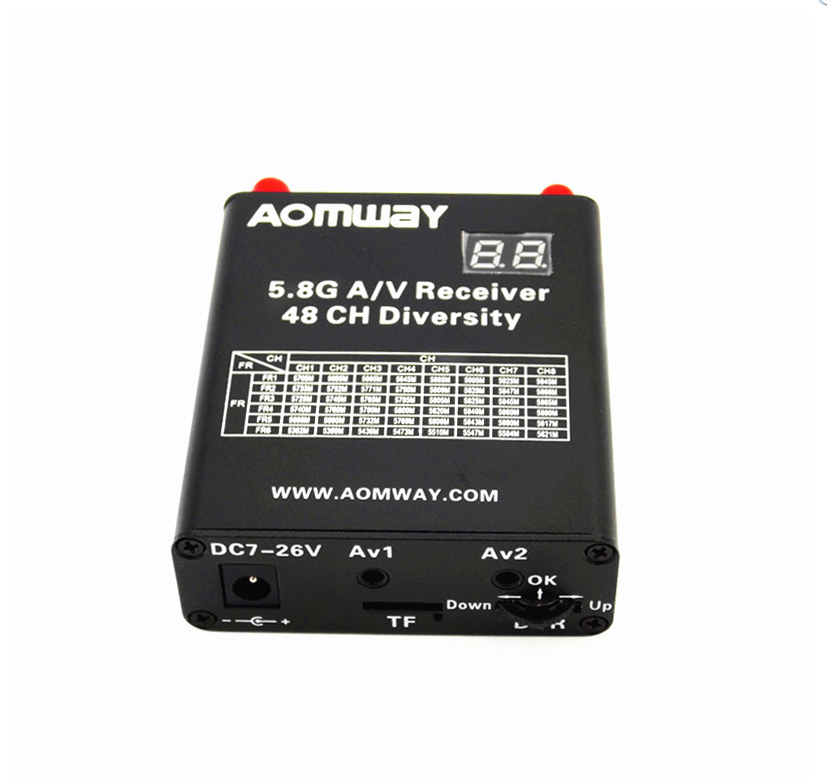

    DVR function operation:

    - When it is powered on, AMOWAY logo will display, then the image received from video transmitter will show up.   The DVR now is on standby, indicator is in solid light.
    - Press "Rec" button to start recording, LED will trun to blinking.
    - To stop recording, press "Rec" once more, LED will return to solid light.


    To enter main menu of the device, press and hold the central button for 5 seconds.

    A. There are 3 items under the main menu, using Down and Up keys to move up and down the selection.
        1.  Play back vidoes files recorded.
        2. Format TF card.
        3. Language selection
    B. Press the central key promptly to enter sub-menu
        1. Use Down and Up keys to select the file you want to play back, then press the central key shortly to start the playback.
        2. During playback, using Down key to fast reverse the file at x1, x2, x4, x8 speeds
        3. During playback, using Up key to fast forward the file at x1, x2, x4, x8 speeds
        4. Use central key to start or pause the playback
    C. To return back to main menu, press and hold the central key for 5 seconds
    D. Press the central key shortly to return to standby status.

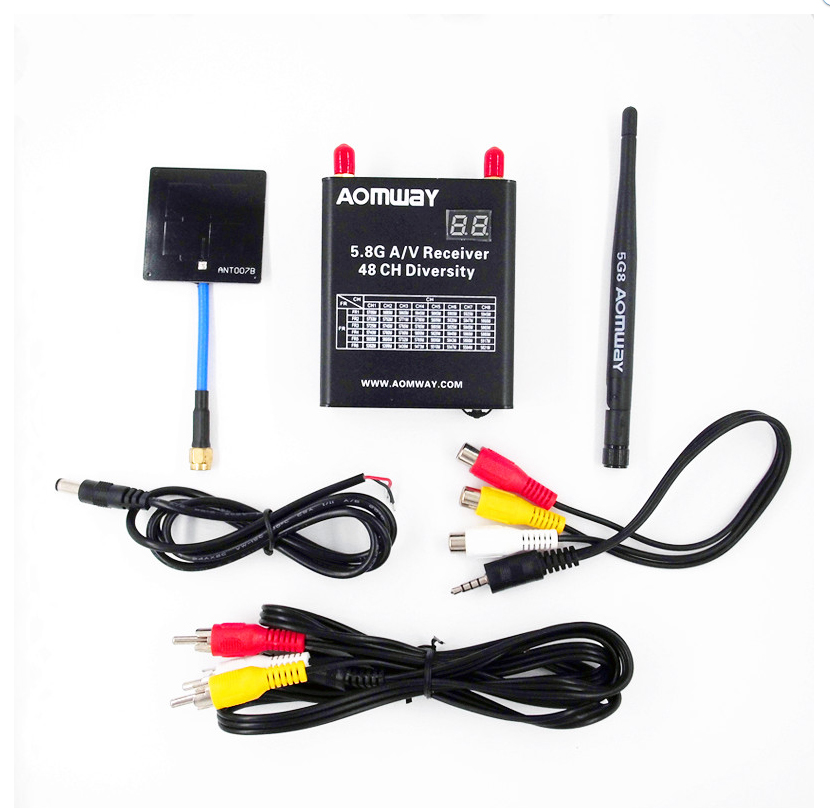

    Includes/Requires:

    Includes:
    1 x receiving module (RX only)
    1 x 5db antenna
    1 x 6dB patch antenna
    1 x power cable
    2 x video cables
