| SKU | TX001A |
|---|---|
| Brand | AOMWAY |
| Added | 2016/09/06 |
| Updated | 2018/03/23 |
Specifications:

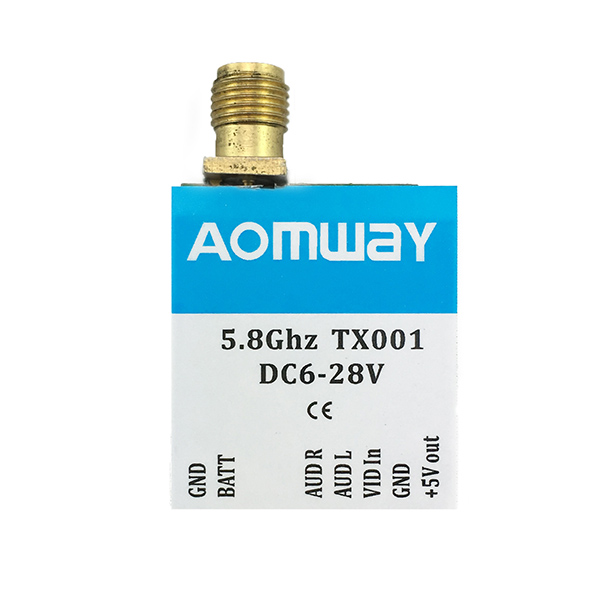

AOMWAY 5.8G 40CH 20-600mW Adjustable A/V Transmitter (VTX) TX001A

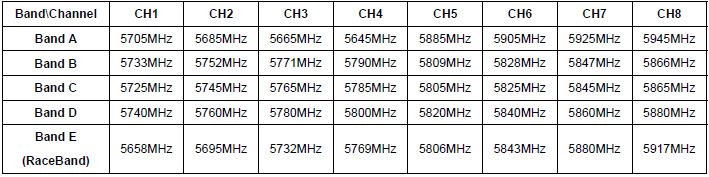

Transmitter channel number: 40-ch
Power input: 6-28V DC, wide range input
Transmitting power: button control power on/ 25mW/ 200mW/ 600mW
Transmitting current: 150mA @12V, 200mW
Output voltage: 4.9-5.1V (for camera)
Transmitter unit Dimension: 29 x 25x 10mm
Weight: 11g (excluding antenna)
Antenna connection: SMA jack (modules side) Refer to here for connector type diagram
Includes/Requires:
Includes:1 x transmitting module (TX only)
1 x 5db antenna
1 x power cable
1 x video cable
Requires:
1 x Receiver
