SKU | 200CMOS |
---|---|
Brand | AOMWAY |
Added | 2015/07/09 |
Updated | 2015/07/09 |
Specifications:

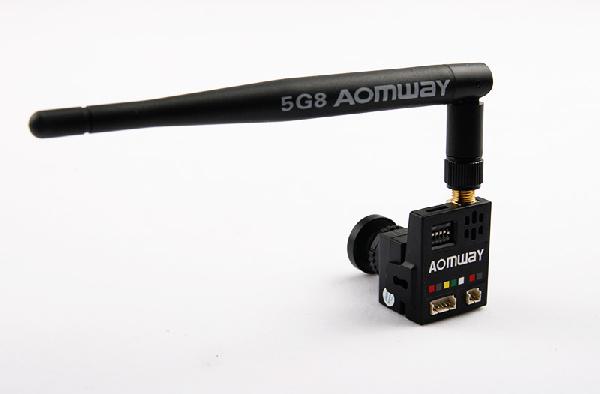

AOMWAY 5.8G 32CH 200mW A/V Transmitter (VTX) + 700-line HD Camera 2-in-1
Transmitter specs:
Transmitter channel number: 32-ch
Transmitting frequencies: 5740-5860MHz / 5705-5925MHz
5725-5865MHZ / 5733-5866MHZ
Power input: 6-28V DC
Transmitting power: 200mW
Transmitting current: 160mA @12V
Audio: stereo (left and right channels are separated)
Antenna connection: SMA jack (modules side) Refer to here for connector type diagram
Camera specs:
700 ILUX
2.1 wide angle lens
1/3 CMOS sensor
Video output: 1Vp-p75ohm
Field view angle: 170 degrees
Power supply: 3.6 - 5.5V
Video format: PAL
Connector type: MINI JST 5-Pin, compatible with AOMWAY 200mW VTX.
Includes/Requires:
Includes:1 x transmitting module + camera
1 x 5db antenna
