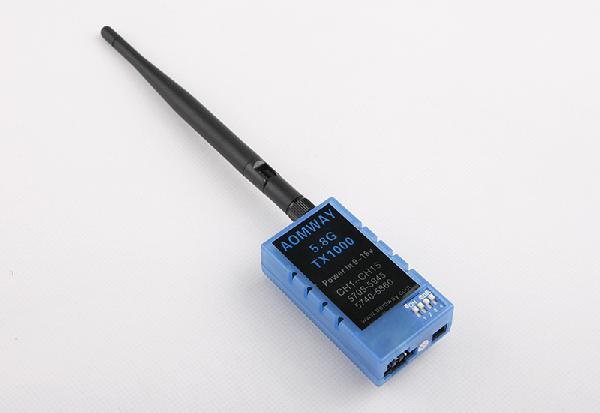

AOMWAY 5.8G 32CH 1000mW A/V Transmitter (VTX)
    SKU TX1000
    Brand AOMWAY
    Added 2015/07/06
    Updated 2016/10/20
    Tags: AOMWAY  5.8G  32CH  A  V  Transmitter  VTX


    Special features:

    Provide 5V or direct output  (optional by using jumper) ouput for powering camera.

    * When it is set to direct output mode, the output volage will be same as the transmitter's main power input voltage, so do make sure your camera input voltage is compatible with your main battery voltage when use the direct output mode.


    AOMWAY 5.8G 32CH 1000mW A/V Transmitter (VTX)

    Transmitter channel number: 32-ch
    Power input: 9-16V  DC
    Transmitting power: 1000mW
    Transmitting current: 700mA @12V
    Audio: stereo (left and right channels are separated)
    Transmitter unit Dimension: 60 x 33x 20mm
    Weight: 43g (excluding antenna)
    Antenna connection: SMA  jack (modules side)   Refer to here for connector type diagram


    1 x transmitting module (TX only)
    1 x 5db antenna
    1 x power cable
    1 x video cable

    1 x Receiver
