Tags: AOMWAY  5.8G  25mW  200mW  Adjustable  TX  w  600TVL  Camera  Leaf  Antenna  (4.8-24V  Input)

Features:

Built-in with 25mW/ 200mW adjustable 40CHs 5.8Ghz transmitter and 600TVL camera.

Suit for wide range types of air crafts.

Specifications:

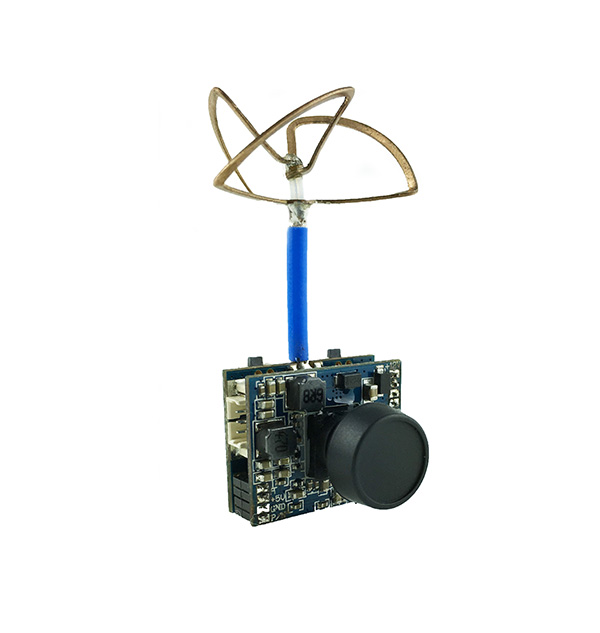

AOMWAY 5.8G 25mW/ 200mW Adjustable TX w/ 600TVL Camera Leaf Antenna (4.8-24V Input)

Specs:

Transmitter:
- Transmitter power: 25mw and 200mW adjustable
- Input power: 4.8 - 24V  wide range input
- Working currency: 140mA@12v, 200mW;   90mA @12V, 25mW

Camera:
- Resolution: 600TVL
- Min illuminations: 1 lux
- Image sensor: 1/4” CMOS
- Field of view: H:120°
- Video output: NTSC/ PAL
- Weight: 7g (including antenna)
- Dimension: 23 x 22 x 19mm


- Video output: NTSC
- Camera resolutions: 520TVL
- Field of view: H:120°/V:100°
- Antenna: 3 lobe right hand circular polarized
- Video output: NTSC
- Image sensor: 1/4 inch HD Color CMOS
- Size: 50 x 25 x 25mm
- Weight: 5g

Includes/Requires:

Includes:
1 x VTX + camera
1 x cable
