7 inch 5.8G Diversity Receiver 32-Channel HD LCD Monitor, DVR Recorder RX-LCD5806 - White
    SKU LCD5806W
    Added 2015/04/10
    Updated 2015/04/16
    Tags: 7  inch  5.8G  Diversity  Receiver  32-Channel  HD  LCD  Monitor,  DVR  Recorder


    Special features:
    1. 1080P HD recording.
    2. Diversity 5.8G 32-channel receiver.
    3. Supporting picture-in-picture (PIP) function; taking picture, recording video, HDMI input and output.
    4. Built-in battery 7.2V 1900mAh


    7 inch 5.8G Diversity Receiver 32-Channel HD LCD Monitor, DVR Recorder

    - LCD Screen: 7inch
    - Pixel: 1024x600
    - Brightness: 500cd/m2
    - View angle: 140/120degree(H/V)
    - 5.8Ghz receiver frequency: ISM5.6~5.95GHz, 32CH
    - Videou output: 1V+/-0.2Vp-p/75ohm
    - Video output: 0.5~2.0Vp-p/10kohm
    - Video format: PAL/NTSC/AUTO
    - RF receive sensitivity: <-92DBM(15DBuV)
    - Antenna port: SMA, jack (monitor side) See connector type diagram
    - Built-in detachable lipo battery
    - Work voltage: DC7-25V
    - Current: <650mA/12V DC

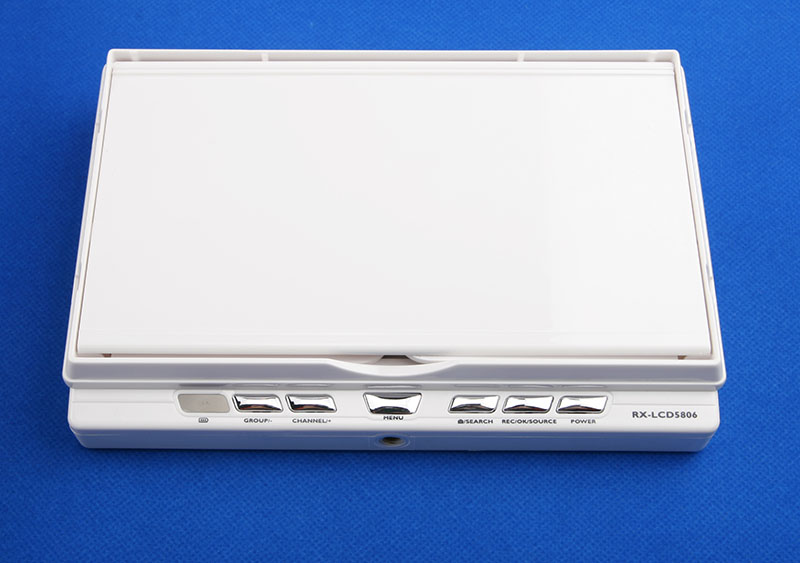

    - One button auto search, easy operation
    - Built-in SD card for video recording, supports up to 32GB (card NOT included)
    - Video resolution: 1080P/720P
    - Video record time: 2, 5, 19mins, infinite

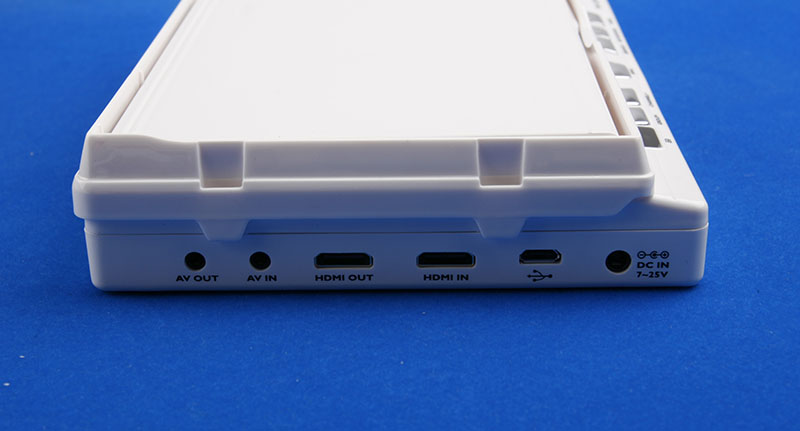

    - USB HOST AV display, Photoviewing, software upgrade
    - HDMI IN: Max.1080P
    - AV format: MPEG2, MPEG2_HD, MPEG4, MPEG4_SD, MPEG4_HD, H.264
    - 1* AV OUT2.5(RF A OUT/RF B OUT and multi OUT)
    - AV IN: 2.5*1
    - HDMI C-shape *1
    - Micro USB *1
    - DC IN OD/ID: 3.5/1.2mm*1
    - Dimension: 180*120*19.5mm

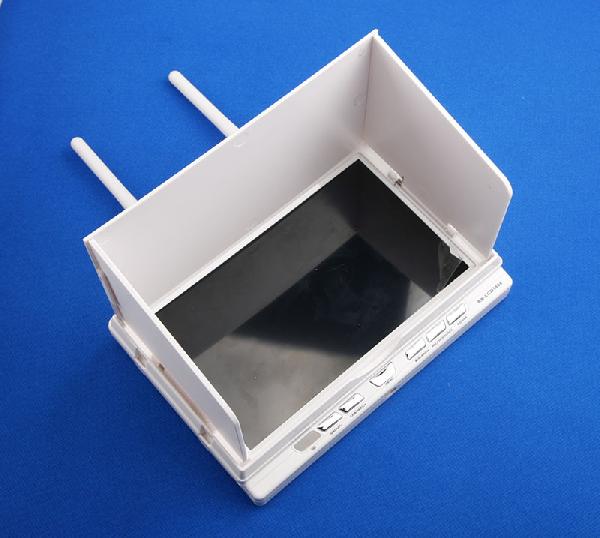

    - With sunshade
    - Weight: 500g

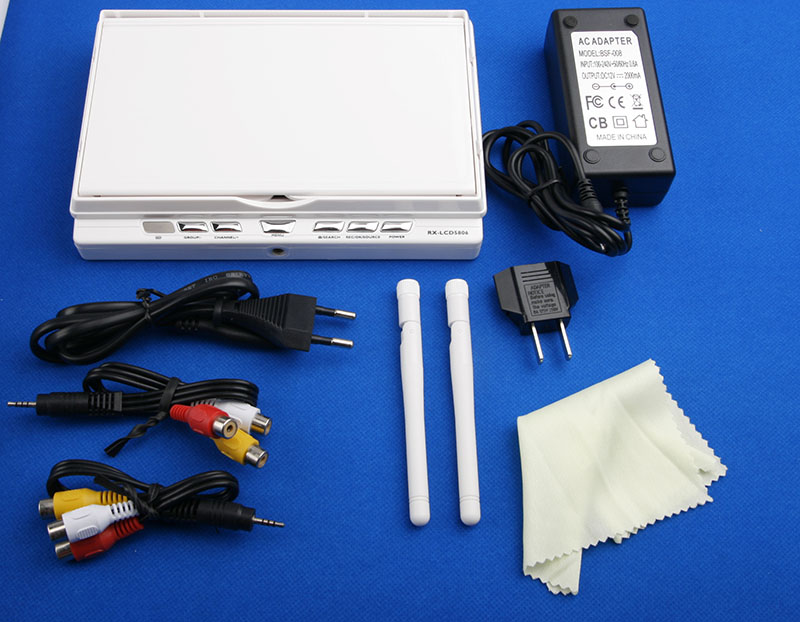

    1 x monitor
    2 x 2db antenna
    1 x 12V, 2A AC adaptor
    2 x AV cables
    1 x power input cord
    1 x AC wall plug adaptor
    1 x battery 1900mAh 7.4V
    1 x instruction manual (built-in)
