5.8G 32CH 600mW A/V Transmitting DIY Package | (DIY skills & tools are needed, not suggest for beginners)
    SKU 5860DIY
    Added 2014/11/11
    Updated 2016/05/31
    Tags: 5.8G  32CH  600mW  A  V  Transmitting  DIY  Package


    This DIY package requires customers have good DIY skills and precise soldering tools, it is not recommended for beginners.

    Due to the nature of the product, damage during soldering, or soldered modules are not covered by warranty.

    600mW full power, no frequency drift, it can work reliably even without heat sink, long distance.

    * For reference, when use 14db plate type antenna for receiver,  our customer reached 5-6Km without image break off during test.

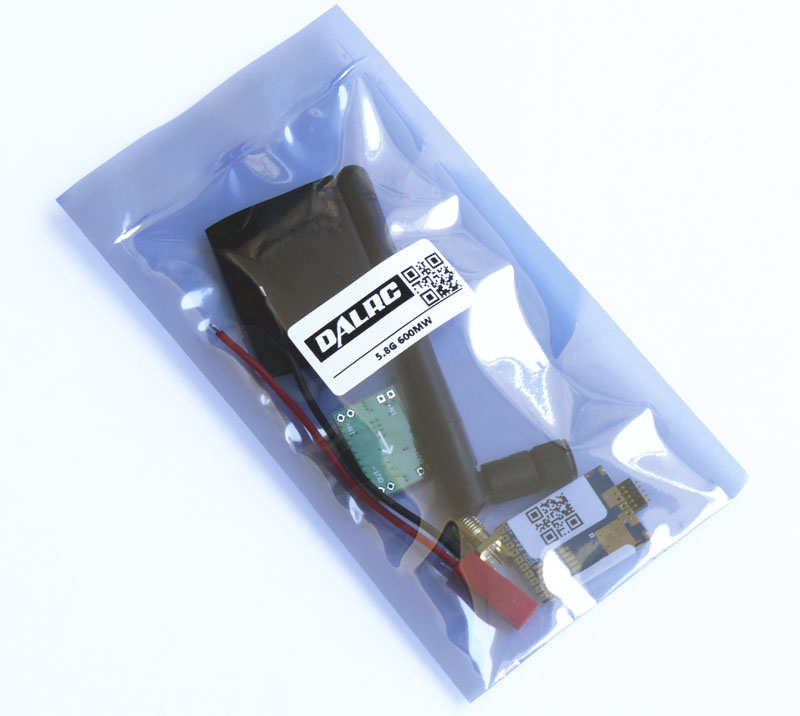

    5.8G 32CH 600mW A/V Transmitting DIY Package

    Power input:  5V  (Please be aware that power supply is 5V)
    Working current: 0.8A @5V.
    Power: 600mW
    Antenna connector: RP-SMA, jack  (on module side)

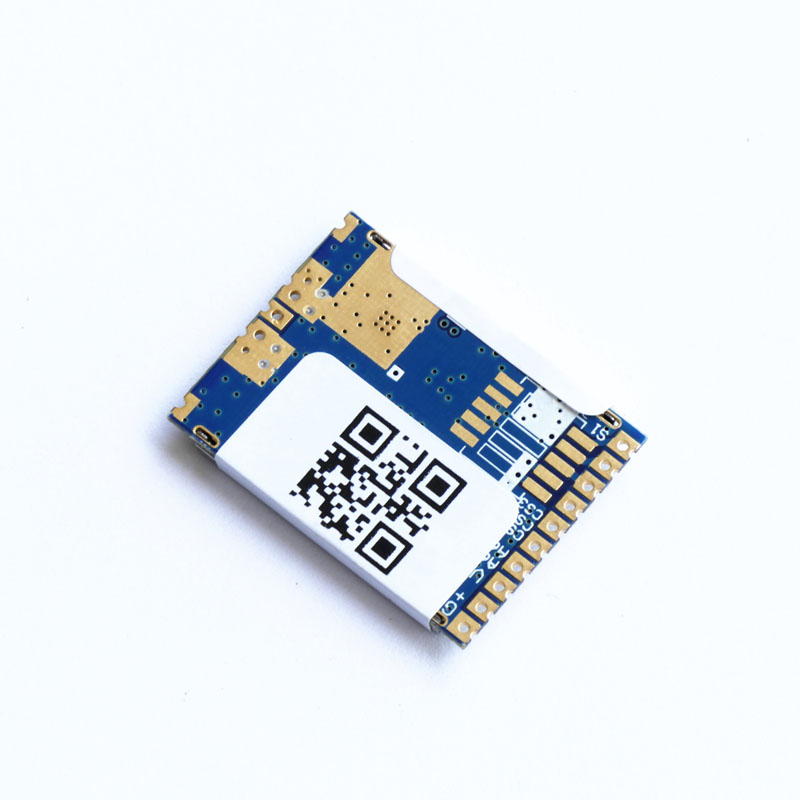

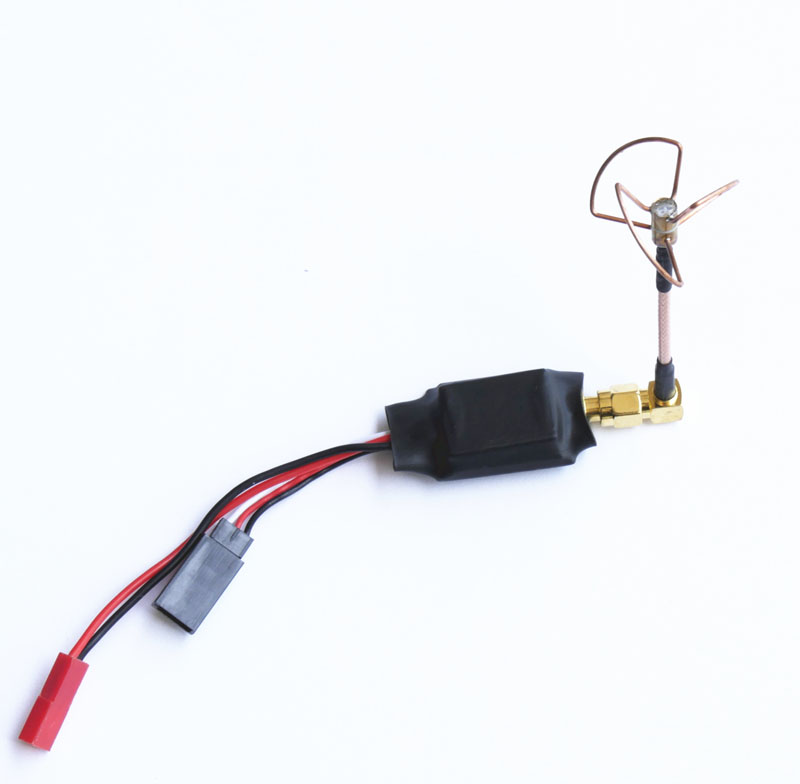

    1 x transmitting unit (TX) with antenna

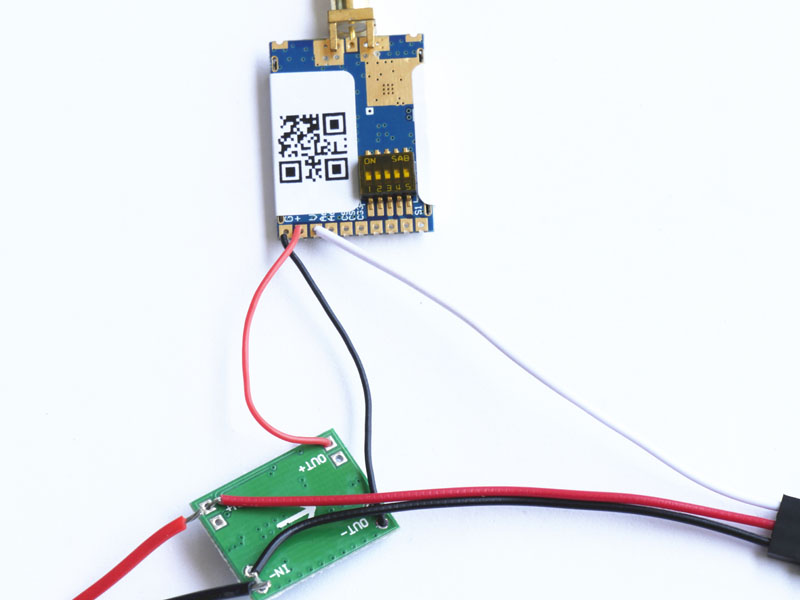

    1 x voltage regulator module
    1 x antenna base
    1 x dial switch pannel
    1 x heat shrinking tube
    3 x DIY wires

    1 x receiving unit (RX)
