Tags: 1080P  HD  Helmet  Sports  FPV  DVR  Waterproof  Camera  SJ4000  -  Silver

Features:

Features:

- High definition screen that displays and replays fascinating videos recorded
- Detachable battery that is easy to replace and prolongs your camera’s service life
- Video recording while charging
- Video recording with battery
- 12-megapixel HD wide-angle lens
- HDMI HD output
- Web camera
- Support storage cards up to 32GB maximum
- Multiple video recording formats: 1080P 720P WVGA
- Recorded in MOV format
- Multiple photo shooting modes: Single shot, Snapper
- Video encryption enabled
- Mini appearance, diversified colors available
- Color: silver


This is the AV out edition, specially for FPV application

To turn on AV out, enters into setting mode after power on, press UP or DOWN button N times till "TV mode" is highlighted,






 enters into "TV Mode" submenu, then select "ON", now the screen will turn off, and AV signal will be sent to the monitor.

To return back to normal mode, repeat the same procedure on monitor and set "TV Mode" to OFF, then switch off the camera and repower on.


Wire definition:

Black: Ground
Red: 5V power input (positive)
White: Video
Green: Audio

When don't use external power supply, you only need to connect the Black (ground) and White (Video) wires.

Specifications:

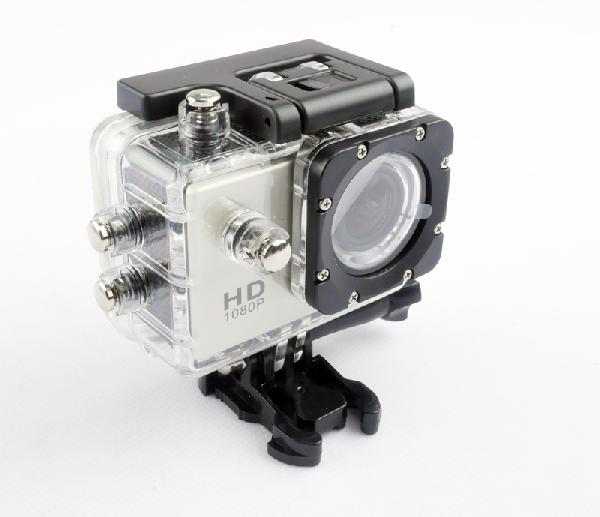

1080P HD Helmet Sports/ FPV DVR Camera W/ Waterproof case, 8G SD card SJ4000 - Silver

Liquid Crystal Display (LCD)	1.5LTPS
Lens	170°A+ HD wide-angle lens
Language Options	English / German / French / Spanish / Italian
	Portuguese / Chinese Traditional / Chinese Simplified / Japanese / Russian
Resolution of Videos Recorded	080P  (1920*1080 )  30FPS 720P   (1280*720)   60FPS VGA   ( 848*480)   60FPS QVGA  (640*480)   60FPS
Video Format	MOV
Compressed Format of Videos	H.264
Resolution of Photos	12M / 8M / 5M
Storage	Micro SD
Shooting Mode	Single Shot / Self-timer (2s / 5s / 10s / Continuous Shooting
Frequency of Optical Source	50Hz / 60Hz
USB Interface	USB2.0
Power Source Interface	5V1A
Battery Capacity	900MAH  (Not included)
Power Dissipation	400mA@4.2V
Recording Time	1080P/ About 70 minutes
Charging Time	About 3hours
Operating System (OS)	Windows XP/VistaorAbove/Win7/Mac os
Dimension	59.27*41.13*29.28

Includes/Requires:

Includes:
1 x DVR camera
1 x waterproof case
1 x AV wire
1 x accessory bag

* Due to security control, battery is not eligible for air shipments, so battery will only be provided to orders ship to addresses in China.
