   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers iMAX 1-6S 5A 100-240V Dual Inputs LiPo/NiMh/LiFe Balance Charger iMAX B6AC
SKU:  IMAXB6AC
Browse SKYRC

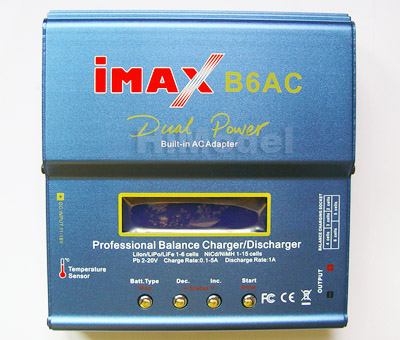

iMAX 1-6S 5A 100-240V Dual Inputs LiPo/NiMh/LiFe Balance Charger iMAX B6AC
Customers rating.
Add To Wish List
Added:2009/09/01
Updated:2011/05/25

Follow Us on:



  Tags: imax  1-6S  dual input  Balance Charger  LiFe charger  A123 compatible

  Features:
This is the iMax dual inputs charger.
● Microprocessor controlled
● High-power and high-performance circuit
● Maximum safety
Delta-peak sensitivity
Capacity limit, processing time limit, input power monitor, temperature limit
● Monitoring the voltage of individual cell
  Specifications:
Dimension: 134L x 142W x 36H mm
Weight: 531g (net)
Input: DC 11 to 18V, 5A/ AC 100 to 240V (2-round pin plug)
Max charging power: 50W
Max discharging power: 5W
Charge current: 0.1A to 5A
Discharging current: 0.1 to 1A
Charging cell number: Li-PO 1-6S; NiCd/NiMh: 1 to 15 cells; Pb: 2V to 20V
Balance charging connector type: Align/HiModel battery type
  Includes/Requires:
Includes:
1 x charger
1 x alligator DC cable
1 x alligator to Dean style connector cable
1 x JST to Dean style connector cable
1 x Futaba to Dean style connector cable
1 x glow plug to Dean style connector cable
1 x Banana connector to Dean style connector cable
1 x instruction manual
