   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Cars eZRun MAX10 SCT-120A Brushless ESC for 1/10 Truck/ Short Truck/ Monster Truck
SKU:  EZR-MAX10S
Browse HOBBYWING
eZRun MAX10 SCT-120A Brushless ESC for 1/10 Truck/ Short Truck/ Monster Truck
Customers rating.
Add To Wish List
Added:2017/02/11
Updated:2017/02/11
Follow Us on:


  Tags: eZRun MAX10 SCT-120A Brushless ESC for 1/10 Truck/ Short Truck/ Big Wheel

Features:
High Reliability & Durability
Built with the most rugged and high-quality components and coupled with
cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even
the most hardcore of racing applicatinos, but is also responsive enough to protect itself from
damage due to overloading due to physical abuse, overuse or even human error.

Great Flexibility & Versatility
With incredible acceleration capabilities and a rock-solid, stable output,
the MAX10 SCT can handle instant full-torque start-ups for wheelies,
high-speed racing on straightaways and powering through the bumpiest terrian.
The user will have the choice of adusting the ESC parameters as per his perference and ability.

Advanced and Secure Electronic Switch
The MAX10 SCT features an electronic switch with a lifespan of over 50000 on/off cycles,
housed in a completely waterproof, dust-prood and shock-resistant design.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions
without any issue of damage caused to the ESC from water or dust.

Innovative Filter Capacitor Thermal Protection
The filter capacitor thermal protection first implemented in the MAX10 SCT will effectively protect
capacitors from exploding and causing irreversible damage to the ESC due to overload.

Regular Firmware Updates
Free of Charge
You can upgrade the MAX10 SCT with the HobbyWing
USB LINK software, a multifunction LCD program box
and a laptop. HobbyWing updates its ESC firmware
regularly giving you upgraded features more often
when available.

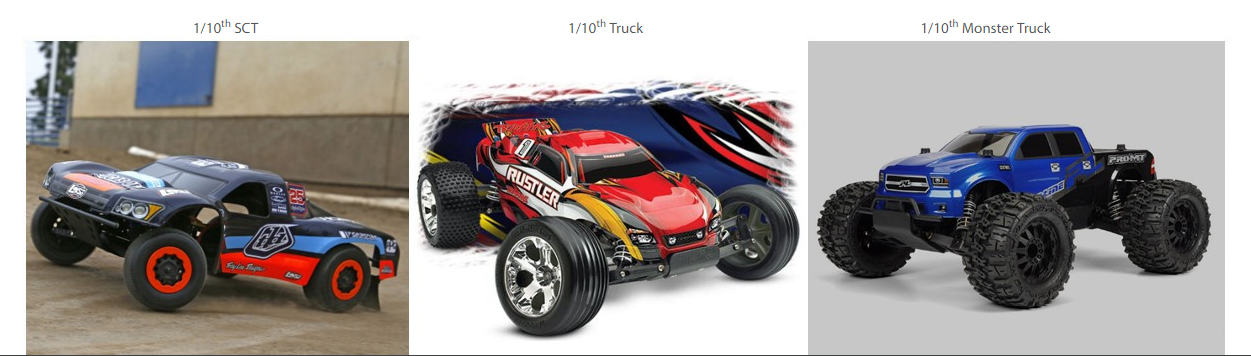

Wide Applicability
This MAX10 SCT ESC is applicable to various 1/10th scale vehicles like
trucks, short-course trucks, monster trucks, and etc.


Specifications:

eZRun MAX10 SCT-120A Brushless ESC for 1/10 Truck/ Short Truck/ Monster Truck


Specifications

Product Name

EzRun MAX10 SCT

Product Number

30102601

Type

Scale

1/10th

Brushed/Brushless

BL

Sensored/Sensorless

SL

Waterproof

Yes

Specifications

Cont./Peak Current

120A/830A

Input

2-4S LiPo/6-12 Cells NiMH

BEC Output

Switch Mode:6V/7.4V,4A

Wires & Connectors

Input Wires

Red-12AWG-200mm*1/Black-12AWG-200mm*1

Output Wires

Black-12AWG-200mm*3

Input Connectors

No

Output Connecotors

4.0 Bullet Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan

Size

25.0x25.0x10.0mm

Voltage Range

5-7.4V

Powered by

Powered by BEC

ESC Programing via

SET Button on ESC

Supported

LED Program Box

Supported

LCD Program Box

Supported

WiFi Module

Supported

Program Port

FAN/Program Port

Firmware

Firmware Upgrade

Supported

Size & Weight

Size

49.0x39.5x34.7mm

Weight

105g

Applications

Motors

SL BL Motors/SD BL Motors(only in SL mode)

Vehicles

1/10thSCTs/Truck/Monster Truck

KV Rating/T Count

2S LiPo:KV≤6000;3S LiPo:KV≤4000;4S LiPo:KV≤3000(36XX Series of Motors)


Includes/Requires:
Includes:
1 x ESC
