HL W42-25 390KV Outrunner Brushless Disk Type Motor for 450-650 Multi-rotor Aircraft
Customers rating.
Add To Wish List
Added:2012/05/29
Updated:2012/07/26

Follow Us on:


  Tags: multi-rotor  brushless motor

  Features:

- HL disk type motors specially designed for multi-rotor aircrafts.
- Utilizing 0.2mm Silicon steel sheets.
- Well balanced at factory, ensures maximum efficiency and low noise.
- Higher g/w ratio, very good choice for muti-rotor application.
- New motor mount suits for different mounting spaces.
- New prop adaptor design, you can fix the prop with prop adaptor, or mount the new series carbon fiber props directly to the motor without using prop adaptor.

  Specifications:

Model: W42-25 390KV
Idel current: 0.2A at 7.4V
Net weight: 87g
Max cell number supported: 6S Lipo
Max current: 15A
Recommended ESC: 20A
Working current: <11A
Max power: 330W
Internal resistance: 0.24Ω

Application: specially designed for quadcopter and multi-rotor aircrafts.






  Includes/Requires:

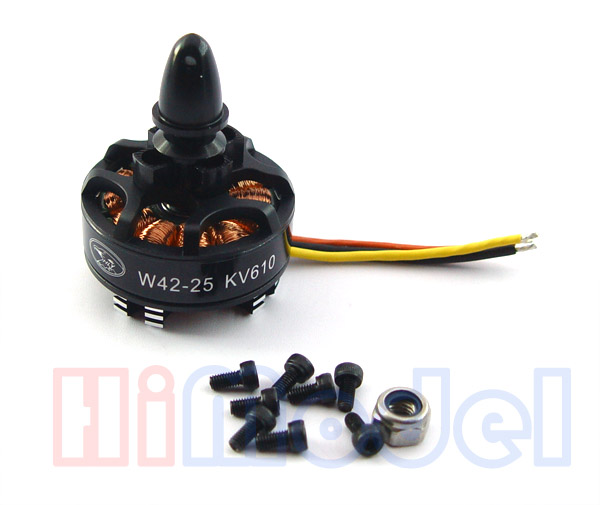

Includes:
1 x motor
1 x prop adaptor
4 x prop adaptor screws

*Connectors are not included
  Comments:

Hint:
It is suggested not use prop exceeds 12 inch for this motor.
