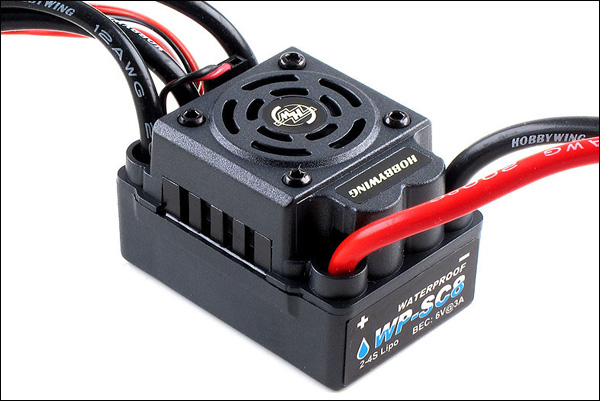

Ezrun-SC8 120A Brushless ESC for Short Course Truck
Customers rating.
Add To Wish List
Added:2010/11/13
Updated:2010/11/13

  Tags: eZRun-sc8  Brushless ESC  short course ESC

  Features:
  1 Integrated and compact design, very suitable for short course trucks and buggies.
2 The built-in switching mode BEC of EZRUN-SC8 ESC has a powerful output to supply all electronic equipments even with 4S Lipo input.
3 Excellent start-up, acceleration and linearity features.
4 With 3 running modes: Racing mode (Forward), Forward/Backward mode and Rock Crawler mode.
5 With 4 steps of maximum reverse force adjustment.
6 Proportional ABS brake function with 5 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
7 Compatible with mechanical disc-brake system.
8 With 9 start modes (Also called "Punch" ) from "Soft" to "Very aggressive" to suitable for different tracks.
9 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
10 With 8 steps of timing adjustment to get the best compatibility with various of motors.
11 Easily program with only one button and compatible with pocket-sized LED Program Card and the Advanced LCD Program Box.
12 ESC firmware updatable via an USB adapter on the Advanced LCD Program Box.
13 The major electronic components are sealed against splashing water and dust.
14 2 mounting holes on the bottom are helpful for firmly installing the ESC on the chassis.
　
4 Programmable Items (Click the following picture to enlarge it)
  Specifications:
  1.1 Output:
EZRUN-SC8 ESC: Continuous current 120A, burst current 760A;
1.2 Input:
EZRUN-SC8 ESC: 6-12 cells NiMH/NiCd or 2-4S Lipo;
1.3 BEC Output: Note1
EZRUN-SC8 ESC: 6V/3A (Switching mode);
1.4 Resistance:
EZRUN-SC8 ESC: 0.0004 Ohm;
1.5 Motor Supported: Sensorless Brushless Motor
1.6 Suitable Brushless Motor:

EZRUN-SC8 ESC:
With 6 cells NiMH/NiCd or 2S Lipo: KV≤6000;
With 7-9 cells NiMH/NiCd or 3S Lipo: KV≤4000;
With 10-12 cells NiMH/NiCd or 4S Lipo: KV≤3000;
1.7 Suitable Car:
EZRUN-SC8 ESC:
1/8th scale 4WD short course truck (Include TRAXXAS 1/10th scale short course truck) / buggy ;
1.8 Size: 53.5mm(L) * 36mm(W) * 36mm(H).
1.9 Weight:
EZRUN-SC8 ESC: 98g;
　
Note1: The cooling fan of EZRUN-SC10 and EZRUN-SC8 is powered by the built-in BEC of 6V.
  Includes/Requires:
  Includes:
1 x ESC EZRUN-SC8
