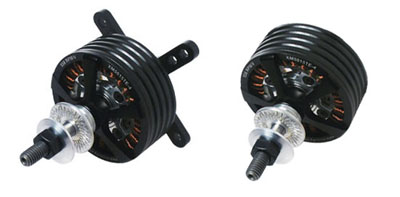

DUALSKY XM5010TE-9 390KV Outrunner Brushless Disk Type Motor for Multi-rotor
Customers rating.
Add To Wish List
Added:2012/06/16
Updated:2012/06/27
Follow Us on:


  Tags: multi-rotor  brushless motor  dualsky

Features:
28 poles. High torque. High efficiency. Specifically designed for Multi Rotor.It also can be used for Remote control aircrafts.

Specifications:
Model: XM5010TE-9
KV: 390RPM/V
Weight: 126g
Diameter: 50mm
Length: 31.6mm
Diameter of Shaft: 6mm
Mounting holes pitch: 19/25mm
Slots,Poles: 24, 28
Idle Current(Io) @10V: 0.9A
Resistance(Ri): 96mOhm
Cruising power[8 mins]: 317.91W
Bursts current[15s]: 26.04A
Peak power[15s]: 578.02W
Recommended ESC: XC4018BA
Setup 1 (No. of Cell, Prop.): 6S, 15x5
Max. weight of 4-rotor copter: 3.18kg
Max. weight of 3D models: 1.06kg
Memo: 3KG 4-rotor copters, 15 - 25E airplanes

*HINT: THE KV PRINTED ON THE PACKING OR MOTOR ARE THEORETICAL/CALCULATED KV, THE KV NUMBER ON THE BELOW SPEC SHEET IS REAL TEST KV, SO THE KV IN THE BELOW TABLE WILL TAKE PRIORITY, AND IT IS NORMAL THAT IF THE KV ON THE PACKING OR MOTOR IS DIFFERENT TO THAT LISTED ON THE BELOW TABLE.


Includes/Requires:
Includes:
1 x motor
1 x prop adaptor
1 x motor mount
4 x prop adaptor screws
