Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Wires/Connectors etc. Switch Harness/ Clips 3-in-1 15A UBEC Step Down Switch Harness W/LED Voltage Meter
   Electric BEC / UBEC
SKU:  SDUBEC
Browse HiModel

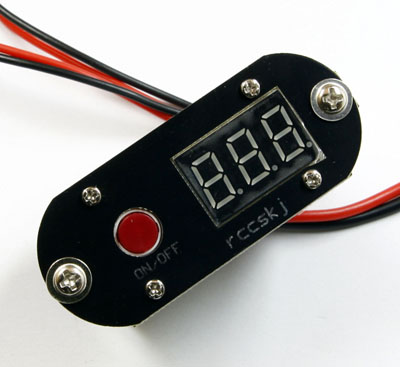

3-in-1 15A UBEC Step Down Switch Harness W/LED Voltage Meter
Customers rating.
Manual:
Add To Wish List
Added:2012/04/14
Updated:2015/04/14
Follow Us on:


  Tags: BEC  switch harness  voltage meter

Features:
 Using ultra high brightness led segment which can clearly visible in the sunshine.
 A set of electronic switch, the voltage display of input and output, high current UBEC in one, which can simplify your airborne equipment.
 The three led segment display real-time input and output voltage value, which can help you to know the condition of power supply at once.
 Output voltage 4.8-9.6V stepless adjustable, which adapt to a variety of high and low voltage servo and receiver.
 15A large current output ( MAX: 20A ), which can provided sufficient working current for the steering gear.
 Working voltage 6-13V, which can be directly power supplied by lithium, nickel-metal hydride and nickel cadmium, A123 battery.
 It can once again the power-up and continue to maintain a normal output voltage at accident power-off
Specifications:
3-in-1 15A UBEC Step Down Switch Harness W/LED Voltage Meter

Input volt range: 6V to 13V
Max Current: 0-15A ( MAX: 20A )
Output voltage: 4.8-9.6V (stepless adjustable, factory default voltage: 5.2V )
Wire type: silicon wire
Connector Type: output Futaba/JR compatible
input JST connector
Weight: 60g
Dimension: 64mm ( L ) * 27mm ( W) * 35mm ( H )
Includes/Requires:
Includes:
1 x 15A UBEC Step Down Switch Harness
