   FPV/ Aerial Photography Gimbal/ Gimbal Controller etc. H4-3D Zenmuse Gimbal for GoPro Hero4 Black (Suit for DJI Phantom 2)
SKU:  DJIH43D
Browse DJI

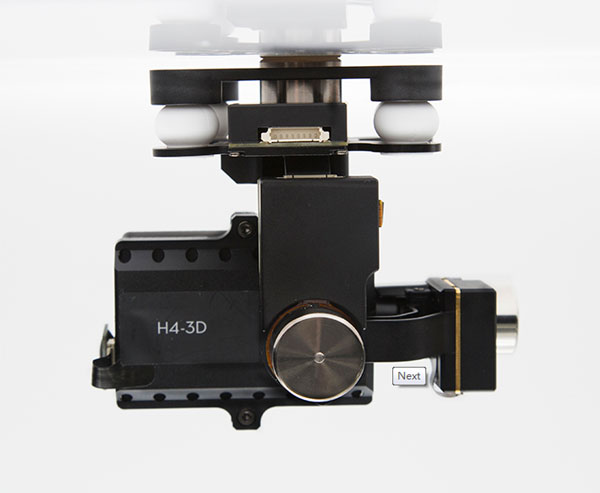

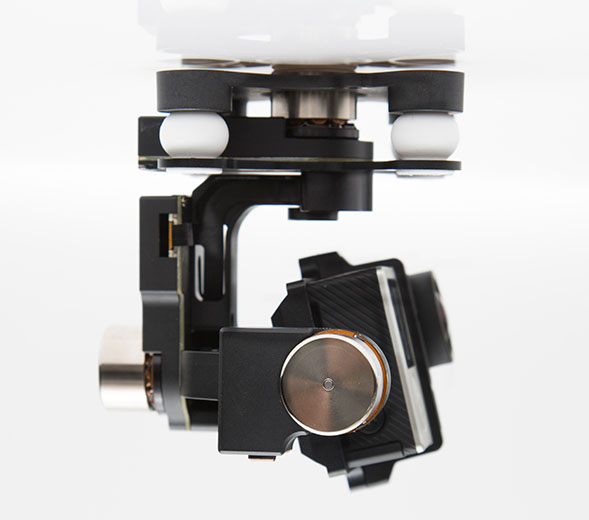

H4-3D Zenmuse Gimbal for GoPro Hero4 Black (Suit for DJI Phantom 2)
Customers rating.
Add To Wish List
Added:2015/03/18
Updated:2015/03/18
Follow Us on:


  Tags: H4-3D Zenmuse Gimbal GoPro Hero4 Black DJI Phantom 2

Features:
Features:


The H4-3D gimbal comes customized for the DJI Phantom 2.
Fly with your GoPro. Works with the GoPro® Hero4 Black camera.
3-axis high performance gimbal
Effortless setup
Part of the Zenmuse family
Independent IMU
Online upgrades

ThIs H4-3D gimbal is customized for the Phantom 2 and does not include the optional Gimbal Control Unit (GCU). If you want to use it with other DJI flight controllers and flight platforms, the independent GCU module is required and sold separately.
Also, please note that H4-3D does not support flight controller Naza-M Lite,  users of Naza-M V1 customers need the PMU module as provided with Naza-M V2 to make to work it with H4-3D.


Specifications:

H4-3D Zenmuse Gimbal for GoPro Hero4 Black (Suit for DJI Phantom 2)



General

Features
  1. 3-axis gimbal
  2. High precision brushless servo control
  3. Aluminum alloy body
  4. Built-in IMU module
  5. Light-weight
  6. A2, WKM, NAZA-M, NAZA-M V2 ,PHANTOM 2 supported
  7. GoPro Hero4 Black supported
  8. Zenmuse technology

Peripheral

Supported Camera
GoPro Hero4 Black
GCU Input Power
3S~6S LiPo (12V~26V)
Assistant Software System Requirement
Windows XP SP3; Windows 7; Windows 8

Mechanical & Electrical

Gimbal Operating Current
  • Static current= 400mA (@12V)
  • Dynamic current= 600mA (@12V)
Gimbal Input Power
3S~6S (12V ~ 26V)
Operating Temperature
-10°C ~ 50°C
Gimbal Weight
168g (camera excluded)
Gimbal Dimensions (With Damping Unit)
103mm X 92mm X 80mm
GCU Weight
22g
GCU Dimensions
42 mm X 32 mm X 9.3 mm

Performance

Controlled Angle Accuracy
Pitch/Roll:±0.02°, Yaw: ±0.03°
Maximum Controlled Rotation Speed
Tilt axis: ±130°/s
Controlled Rotation Range
Tilt axis control: -130 ~ +45°

Regulatory Approvals

FCC (USA)
Yes
CE (EU)
Yes
RoHS (EU)
Yes
Includes/Requires:
Includes:
1x  DJI Zenmuse H4-3D 3-axis Brushless Gimbal


* This is the gimbal only,  Camera or drone are NOT included.
