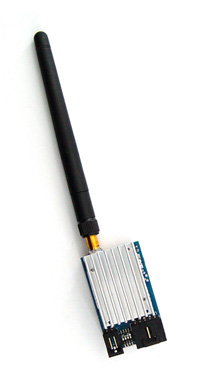

FPV 5.8G 400mW A/V Transmitter Module (TX) TS353

Customers rating.
Add To Wish List
Added:2012/07/31
Updated:2013/03/28

Follow Us on:




  Tags: video recording system  FPV

  Features:

  FPV 5.8G 400mW A/V Transmitting module, a good choice for avoiding interference for customers using 2.4G radio system.

- dimension and weight is similar to 200mw TX, yet the range is extended.
- compare to the 500mw version which with cooling fan installed, the 400mw version is lighter, and consuming less power (longer in-air time), also eliminated vibration to video transmitting system caused by cooling fan.

The 400mw version is a well balanced solution among weight, dimension, range, power consumption etc.

  Specifications:

  FPV 5.8G 400mW A/V Transmitter Module (TX) TS353
Transmitting unit weight: 25g (excluding antenna)
video format supported: NTSC/PAL
Working frequency: 5645-5945Mhz
Antenna connection: SMA
Power input: 7-15V (3S Lipo suggested, does NOT support 4S Lipo)
Transmitting current: 220mA
Dimension: 55*26*17mm (excluding antenna)
Antenna connection: SMA  jack (TX module side)   Refer to here for connector type diagram


*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.




  Includes/Requires:

  Includes:
1 x transmitting unit (TX)
1 x TX antenna (2db)
* No instruction manual supplied with this product.

Requires:
1 x receiving unit (RX)
