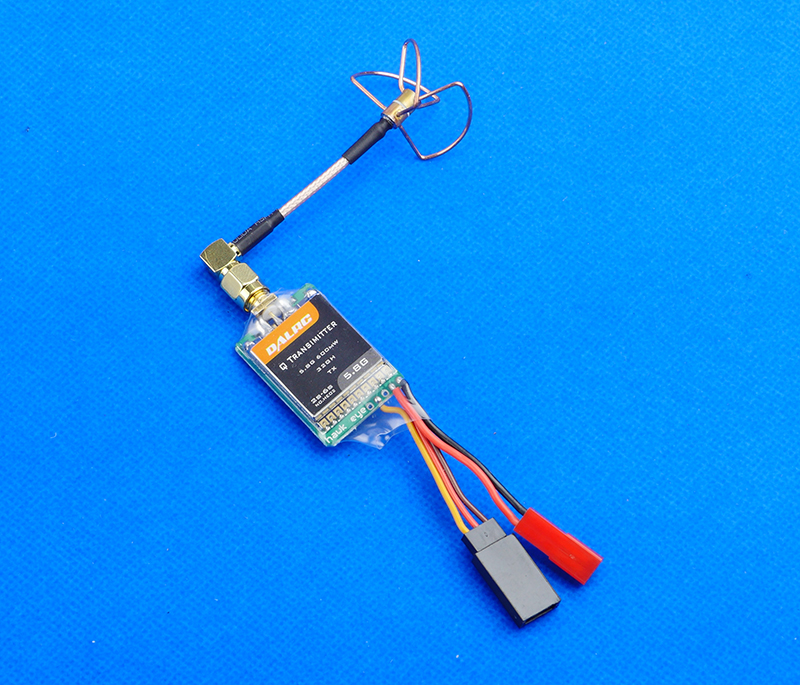

- 600mW power - 32 channels - Long distrance - Compact size (35 x 23 x 7.7mm) - Light weight, 13g only - Wide power input: 6-28V - LED channel indicator - Wrong polarity protection for power supply
There are two versions for this transmitter, JST connector & Servo connector, the difference between the two versions except the power supply connector type is that the JST version doesn't have audio input wire, yet audio input welding point on PCB is available, so customers can solder the audio input wire when needed by themselves. The servo connector version with audio input wire ready.

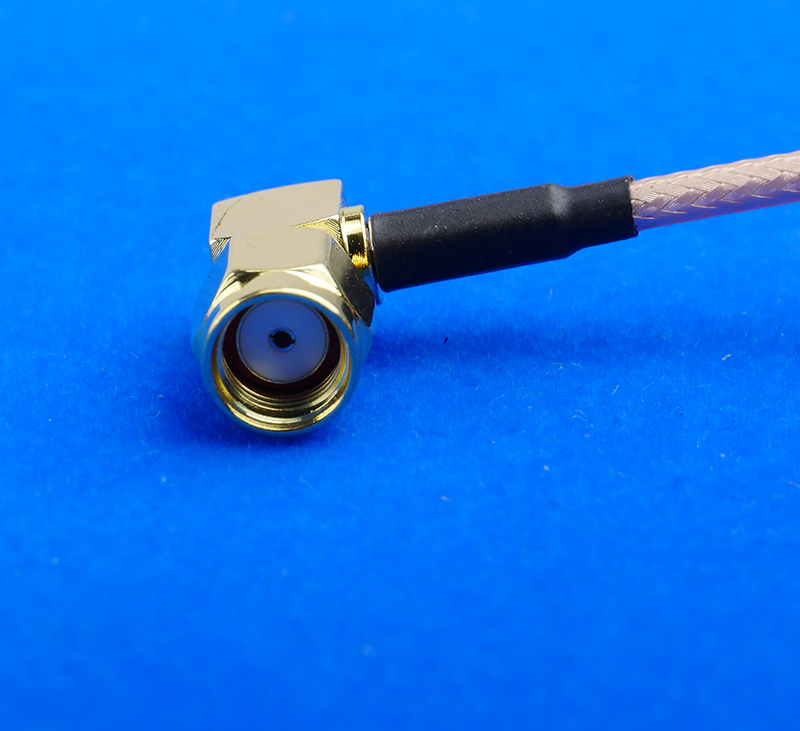

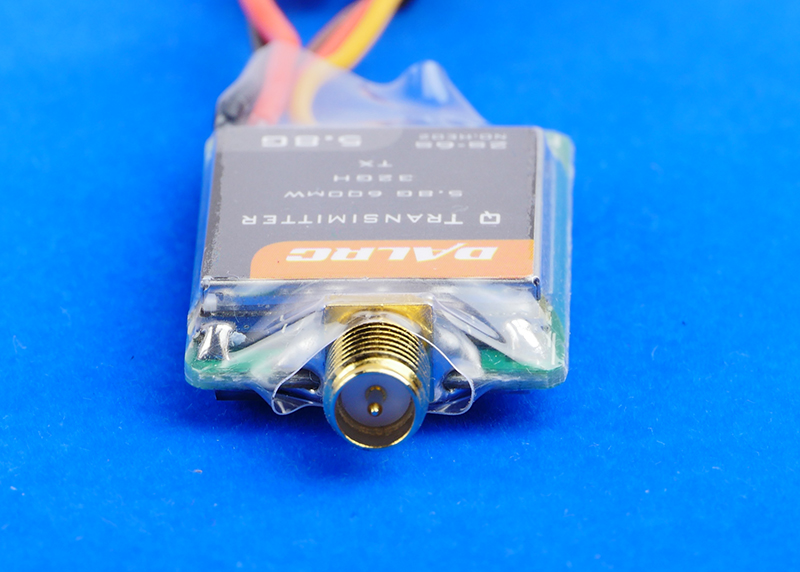

Antenna connection: RP-SMA, jack (module side ) See connector type diagram Power input: 6-28V (3S recommended) Transmitting power: 27DBm (Max) Working current: 310mA (@12V) ; Channel number: 32 Dimension: 35 x 23 x 7.7mm Net weight: 13g
*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.
Includes/Requires:

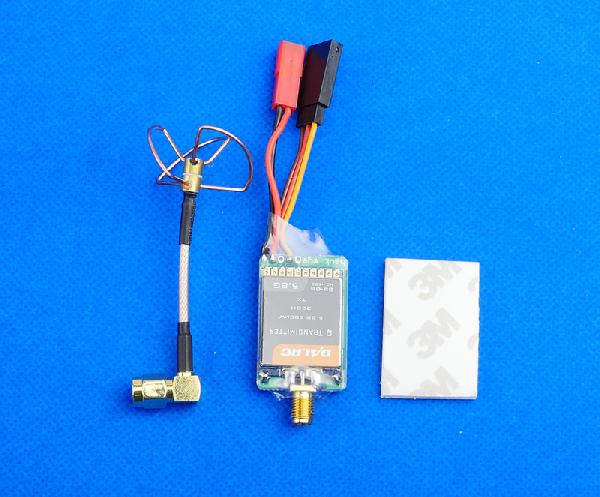

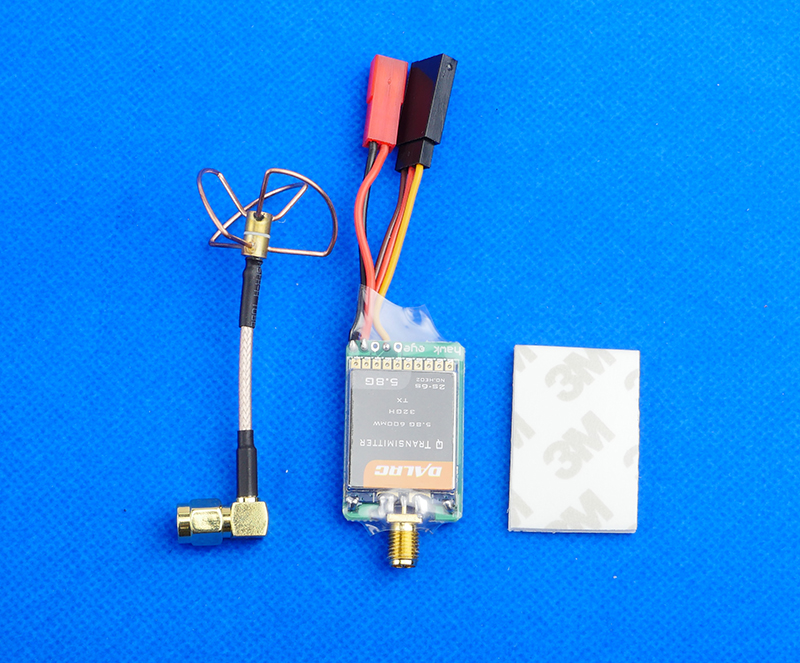

Includes: 1 x transmitting unit (TX) 1 x antenna
Requires: 1 x receiver (RX)
