   FPV/ Aerial Photography Video Glasses/ Monitors 7 inch Monitor Integrated With 5.8G Receiver, DVR Recorder 3-in-1
   FPV/ Aerial Photography Cameras/Video Recorder/Capture
SKU:  PVR758
7 inch Monitor Integrated With 5.8G Receiver, DVR Recorder 3-in-1
Customers rating.
Add To Wish List
Added:2013/08/10
Updated:2014/07/28
Follow Us on:


  Tags: outdoor monitor  FPV monitor  DVR recorder  5.8G A/V receiver  Camera-top monitor

Features:

Feature                                                                                       Application

1. No Blue Screen                                                                         1.Wireless FPV
2.  FPV Portable DVR                                                                                            2.Baby Monitor
3.  TF Card Support up to 32G  (not included)                                                 3.Wireless Visual Reversing Camera Transmission
4.  High Video Quality                                                                                           4.DVD/DVB AV Wreless Transfer
5.  Speaker                                                                                                             5.Engineering Construction Monitor

7.  Receiving Sensitivity:-90dBm                                                                        6.Wireless Video Leisure Goods
8.  Frequency Control:built-in Frequency and Phase Lock Loop                 7.Wireless Camera Security System
9.  Support Wired & Wireless Camera, Photo Function,                                8.Wireless Video Medical Apparatus
10. Motion Detection, Cycle Recording                                                             9.Wireless Doorbell


This DVR is the ideal choice for security & protection, evidence & investigation, like police, household, sports, automotive industry, shops, etc..



﹥Power off  Without Video Lost
﹥Photo Function: It Can Take, Review & Store Pictures

﹥Seamless Continuous Record:No Intermittent Recording, it will not Miss any  Detail and Wonderfulness

﹥Resolution

   D1(720×576),VGA(640×480)QVGA(320×240),Higher Resolution,Bigger File.

﹥Cycle Recording

   Overwrite: It supports loop recording, which can automatically overwrite
   when storage is full;TF card life is longer than normal DVR with unique algorithm

﹥Motion Detection

   Motion Detection Available : Record Only when there is movement

﹥Motion detection sensitivity

   It is adjustable according to the situation

﹥Day Label

   Optional to show the day label when video recording

﹥Voice Record

   Voice record is optional when video recording

Includes a standard 1/4-20 tripod mounting hole on
the bottom for simple use in your ground station!



Specifications:

7 inch Monitor Integrated With 5.8G Receiver, DVR Recorder 3-in-1


Display

Model                                 PVR-758
Resolution                        1024 x 600 Pixels
Aspect Ratio                     16:9
Brightness                         250cd/m2
Contrast                             700:1

Response Time               10ms
Backlight                             LED
Support Video Format      PAL-4.43; NTSC-3.58
Viewing Angle                    75°/75°(L/R)75°/75°(U/D)

Input
Input Singnal                     Video\Audio \RF \HDMI(Optional)
HDMI Support Mode         480i\480p\576i\576p\720p\1080i\1080p(50/60Hz)

Output

Output Singnal                  VIDEO
Earphone Output              3.5mm Audio output
Power

Input Voltage                      DC:6~24V
Power Consumption       ≦8W
Enrivonment

Install Way                         Includes a standard 1/4-20 tripod mounting hole on
                                             the bottom for simple use in your ground station!

Working Temperature    ‐20~50℃
Storage Temperature    ‐30~65℃
Dimension

TF Card Max up to           32G  (not included)
Size                                    189(L)x134(W)x32(H)mm
Weight                               450g

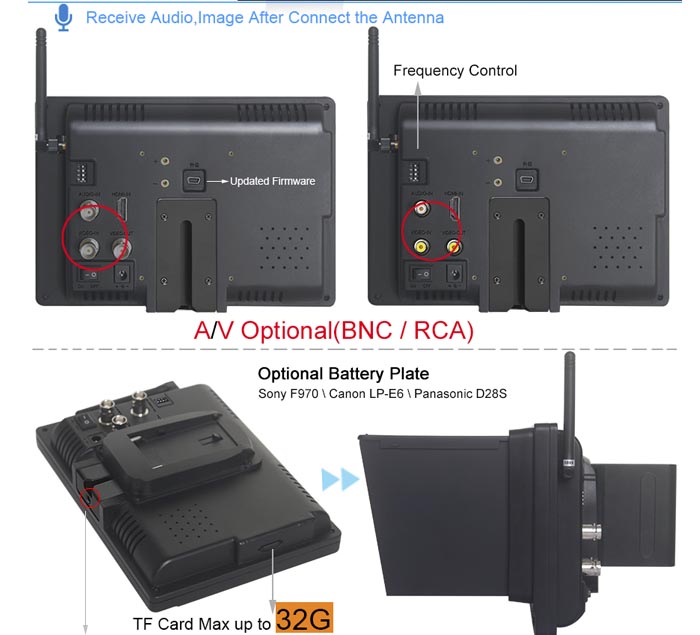

Antenna connector: RP-SMA, jack (monitor side) See connector type diagram


* FOR SIGNAL INPUT CONNECTORS, OUR VERSION COME WITH 3 BNC TO RCA CONVERSION CONNECTORS, SO YOU CAN CONNECT THE MONITOR WITH BOTH RCA OR BNC INPUT.

*  THE MANUFACTURER USES SAME OUTER PACKING FOR MANY DIFFERENT VERSIONS OF PRODUCTS, SO THERE MAY HAVE MANY DISCREPANCIES  ON THE OUTER PACKING, PLEASE DISREGARD THOSE DISCREPANCIES IF ANY.


Includes/Requires:
Includes:
1 x monitor
1 x 2db antenna
1 x Sony F970 battery plate (pre-installed)
3 x BNC to RCA adaptors
1 x sunlight shield
1 x HDMI cable
1 x instruction manual
